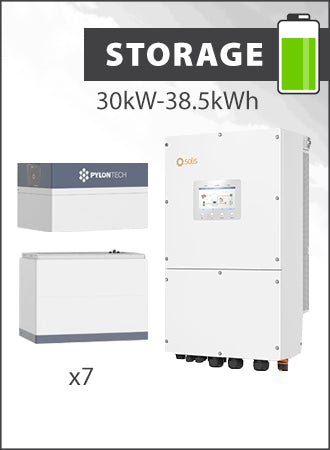

Solis S6 EH3P 30kW HV Hybrid inverter and Force H3 35.8kWh
Solis S6 EH3P 30kW HV Hybrid inverter and Force H3 35.8kWh
Solis S6 EH3P 30kW HV Hybrid inverter and Force H3 35.8kWh
Solis S6 three phase with Pylontech high voltage — 30 kW three phase with a seven-module Force H3 stack.
High-voltage storage behind a three-phase hybrid is the standard answer for a large house or a small commercial building: fewer amps for the same power, thinner DC cable, and a stack that grows by adding modules rather than paralleling strings.
Please read before ordering
| 7 x PYL-F-H3-BATT | Pylontech Force H3 5.12kWh High Voltage Battery Module | |
| 1 x SOL-S6-EH3P30K-H | Solis S6 Three Phase 30kW High Voltage Hybrid Inverter | |
| 1 x PYL-F-H3-BMU-BASE | Pylontech Force H3 BMU with base and cables | |
About the Solis S6 three phase with Pylontech high voltage
These packages pair a Solis S6 EH3P inverter with a Pylontech high-voltage battery — either PowerCube H2 modules on a rack with a 1000 V / 100 A BMS, or Force H3 modules on their BMU and base.
Buying them together matters more here than on a single-battery job. The BMS, the module count and the rack all have to agree with each other and with the inverter, and a package is that agreement already made.
What a package cannot do is make the cable termination somebody else's problem — see the note below on joining Solis power cables to Pylontech battery cables.
What is in this package and what it needs
This is a Solis three-phase high-voltage hybrid with a Pylontech high-voltage battery stack, its BMS and its rack.
The inverter is a Solis S6 EH3P high-voltage hybrid and the battery is a Pylontech high-voltage stack with its own BMS. The Package Contents block on this page is the definitive list of what ships.
The products it is ordered with:
What the job needs
The details that decide whether this suits the system:
- The Package Contents block is the definitive list of what ships.
- These are high-voltage systems. The inverter is an S6 EH3P high-voltage hybrid, not a low-voltage one.
- On the PowerCube H2 package you will need a method of joining the Solis power cables to the Pylontech battery cables — we recommend a disconnector or busbar.
- The Force H3 packages ship with the BMU, base and cables; the PowerCube package ships with the 1000 V / 100 A BMS and the Racky Rax rack.
- Check the module count against the inverter rating. The 50 kW package carries the same 35.8 kWh stack as the 30 kW package, so it is the inverter that is oversized relative to the battery, not the other way round.
Where this earns its place
The S6 three phase with Pylontech high voltage is specified most often for these jobs.
Solis 30 kW with Force H3 35.8 kWh technical data
Questions we get asked about this inverter
What is in the package?
The Package Contents block on this page is the definitive list — inverter, battery modules, BMS or BMU, and the rack or base where one is included.
Is anything else needed?
On the PowerCube H2 package, a way of joining the Solis power cables to the Pylontech battery cables. A disconnector or busbar is what we recommend.
Is this high voltage or low voltage?
High voltage. The inverter is an S6 EH3P HV hybrid and the battery is a Pylontech high-voltage stack.
Can the battery be expanded later?
Yes — within the module count the BMS and inverter support. Ask us with the exact stack before ordering.
Documents, advice and trade pricing
Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our storage range, our hybrid inverters and our batteries, or email sales@clearraysolar.com if you would like us to check a pairing before you order.
