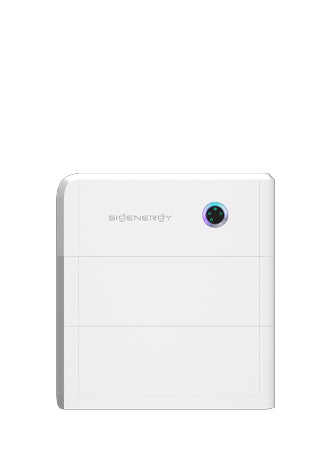

Sigenergy Sigenstor EC 6.0 kW SP with 1 x 10.0 kWh Battery
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
Sigenergy Sigenstor EC 6.0 kW SP with 1 x 10.0 kWh Battery
- Sigenergy Sigenstor EC 6.0 kW SP with 2 x 6.0 kWh Battery
- Part No: SIG-EC-6.0-SP-BAT-10.0
- Storage Systems - Storage Package
| 2 x SIG-STOR-BAT-6.0 | Sigenergy Sigenstor Battery 6.0 kWh with LED | |
| 1 x SIG-STOR-EC-6.0-SP | Sigenergy Sigenstor Energy Controller 6.0 kW Single Phase | |
| 1 x SIG-STOR-GM-KIT-ALF | Sigenergy Sigenstor Installation kit for Ground-Mount with Adjustable Levelers Feet | |
| 1 x SIG-SENSOR-SP-CT-100 | Sigenergy Power Sensor Single Phase External CT | |
Sigenergy Sigenstor Energy Controller 6.0 kW SP with 2 x 6.0 kWh Battery Module
Sigenergy is leading a new way of producing, storing, transferring, and consuming home energy. They provide a genuine all-in-one solar energy storage system, SigenStor. Its unique 5-in-One modular design integrates Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one intelligent home energy system. Simple, robust and versatile, it will be a great addition to your home.
Electrical
| Rated Power (Pmax) | 6,000 W |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Energy | 9.04 kWh |
| Depth of Discharge | 100 % |
| Battery Voltage | 600 V |
| MPPT Quantity | 2.0 |
| Min MPPT Voltage | 50 V |
| Max MPPT Voltage | 550 V |
| Max Input Voltage | 600 V |
| Max DC Power | 7,360 W |
| Max AC Power (5 min) | 3,680 W |
| Max DC Current | 32 A |
| Max DC Inputs | 2.0 |
| Integrated DC Switch | Yes |
Mechanical
| IP Rating | IP66 |
|---|
Operating conditions
| Operating Temperature | -20 °C to +55 °C |
|---|
- Brochure Sigenergy Home Energy Solution
- Data Sheet Sigenergy Sigenstor CommMod EN
- Data Sheet Sigenergy Sigenstor Energy Gateway HomeMax EN
- Data Sheet Sigenergy Sigenstor EV DV Charging Module EN
- Data Sheet Sigenergy Single Phase Power Sensor EN
- Data Sheet SigenStor Battery 6.0 - 10.0
- Installation Manual Sigenergy App EN
- Safety Transport & Handling Documentation Sigenergy MSDS
- User Manual Sigenergy Sigenstor SP System EN
- Warranty Sigenergy Inverter System EN
- Warranty Sigenergy Sigenstor EN
- Data Sheet Sigenergy Sigenstor Battery 5 and 8 EN
- Data Sheet Sigenergy Sigenstor Energy Controller EN
- Data Sheet Sigenergy Sigenstor EV AC Charger EN
- G98 Certificate Sigenergy Sigenstor EC SP
- G99 Certificate Sigenergy Sigenstor EC SP
- Installation Manual Sigenergy Sigenstor 3.0-6.0kW Controller EN
