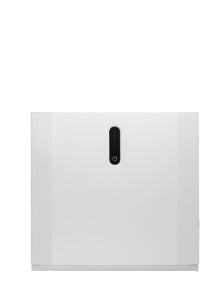

SolarEdge Home Battery 48V V2 - Low Voltage 4.6kWh module

BAT-05K48M0B-02 - Three Phase Inverter Connection Only

• DC coupled battery featuring superior overall system efficiency, generating more energy to store and use for on-grid and backup* power application.
• Scalable solution that enables to stack up multiple battery modules per inverter for increased capacity (up to 23 kWh).
• Integrates seamlessly with the complete SolarEdge Home ecosystem, offering a single source for warranty, support and training, to streamlined logistics & operations.
• Solar, storage, EV charging, and smart devices all monitored and managed by a single app for optimized production, consumption, and backup* power.
• Includes enhanced safety features for battery protection.
• Simple plug and play installation, with automatic SetApp-based configuration

* Backup applications are available for residential installations only and are subject to local regulations. Additional components and a firmware upgrade may be required. For more information regarding commercial deployments where backup power is not supported, please refer to the SolarEdge application note. (compare the datasheet)

Details:

• Battery type: Li-Ion - LFP
• Usable energy per module (100% depth of discharge): 4.6 kWh**
• Voltage range: 44.8 - 56.5V
• Peak Roundtrip Efficiency: >95.4%
• Dimensions (W x H x D): 540 x 500 x 240 mm
• Weight: 54.7 kg

Please refer to the SolarEdge compatibility matrix: https://www.solaredge.com/sites/default/files/se-compatibility-matrix-for-solaredge-three-phase-inverters-and-batteries-application-note-eng.pdf

**As of January 2025, 5.5% increased Storage Capacity (4.85kWh) Available for batteries connected to new installations of Home Hub Three-Phase inverters.

Related Products:

• Battery Top Cover Kit - SE-BATT-CVR-KIT-4.6
• Battery Floorstand Kit (to allow floor mounting) - SE-FLRSTD-4.6
• Battery to Inverter Cables - SE-CABLE-B2I-4.6
• Battery to Inverter Cables (RWS) - IAC-RBAT-5KCINV-02
• Battery to Battery Cables -SE-CABLE-B2B-4.6
• Tower to Tower Cables - SE-CABLE-T2T-4.6
