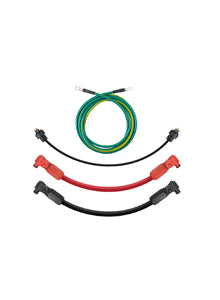

SolarEdge Battery to Battery Cable Set for Home Battery 48V

SolarEdge Battery to Battery Cable Set for Home Battery 48V is a battery cable set — 2.5 m for connecting SolarEdge Home Battery 48 V 4.6 kWh modules to each other.

Battery cable is not ordinary cable. The DC side of a storage system runs at low voltage and high current, so conductor size is set by current and by acceptable voltage drop rather than by the load in watts, and the connection has to survive years of thermal cycling without the termination loosening. Undersized or badly terminated battery cable is one of the few faults in a solar installation that can start a fire rather than simply stop working.

Which is why these are sold as made-up assemblies of a stated length and polarity: the manufacturer has already decided the conductor size, the terminal and the crimp for the battery it belongs to.

Specification

This is a made-up assembly rather than a catalogue cable, so the manufacturer does not publish a separate datasheet for it. The conductor size, terminals and crimps are chosen by the manufacturer for the battery it belongs to. Ask us if you need a figure that is not listed here and we will get it from them rather than guess.

Additional suggested items

A battery cable is rarely ordered on its own:

• SolarEdge Battery to Inverter Cable Set for Home Hub 3ph, SE*K-RWB48 — the battery-to-inverter set
• SolarEdge Home Battery 48V V2 - 3PH Low Voltage 4.6kWh module — the battery module these cables connect

Any datasheets and manuals we hold are in the Documents tab below. See the rest of our battery cable range and our batteries, or contact our sales team at sales@clearraysolar.com if you are not sure which set your battery takes.
