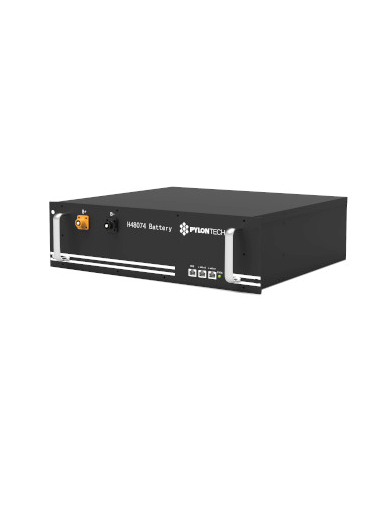

Pylon Powercube H2 High Voltage System 42.62kWh
£3,347.88
ex VAT
£4,017.46
inc VAT
Secure Checkout
14-Day Returns
Tracked Delivery
Store Your SolarUse free power after dark
Long Cycle LifeThousands of charge cycles
Managed & ProtectedBuilt-in battery management system
Technical Specifications
Battery TypeLithium Ion
Nominal Energy42624 Wh
Depth of Discharge90.00 %
Battery Voltage288 V
Continuous Discharge Rate21312 W
Max Discharge Rate (5 min)42624 W
Surge Discharge Rate (15 sec)42624 W
Max Charge Rate (5 min)42624 W
Pylontech Pylon Powercube H2 High Voltage System 42.62kWh
- Pylon Powercube H2 High Voltage System 42.62kWh
- Part No: PYL-PCH2-42.62
- Storage Systems - Li-ion Battery Pack
- -Modular and Scalable
- 5 – 12 modules per rack and up to 6 racks in parallel
- -Flexible BMS voltage range
- From 240VDC to 576VDC
- -LiFePO4 technology
- For safety and long cycle life
- -High System Safety
- BMS has charge, current and temperature protection
- -Flexible configuration options
- Rack mounted or container-based systems
This part is made up of the following items:
| 12 x PYL-PC-H2-BATT | Pylon PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection(H48074) | |
Powercube series products with its modular design concept, enables the highest flexibility both for rack mounted and container based constructions, giving the flexibilities for customer to deploy the system. Configurable from units of 5 - 12 modules per system, the system can supply 240 - 576V for high Voltage applications.
Key features:
Each Battery module comes with 1 x Communication Cable and 1 x Orange Power Cable
A BMS unit and external cable kit is required for each individual stack of batteries.
For installations with two BMS units and more an MBMS is required.
This is a bulk pack of 1 x Pylon PowerCube H2, 3.552kWh, 48V 74Ah for High Voltage series connection(H48074) (PYL-PC-H2-BATT)
