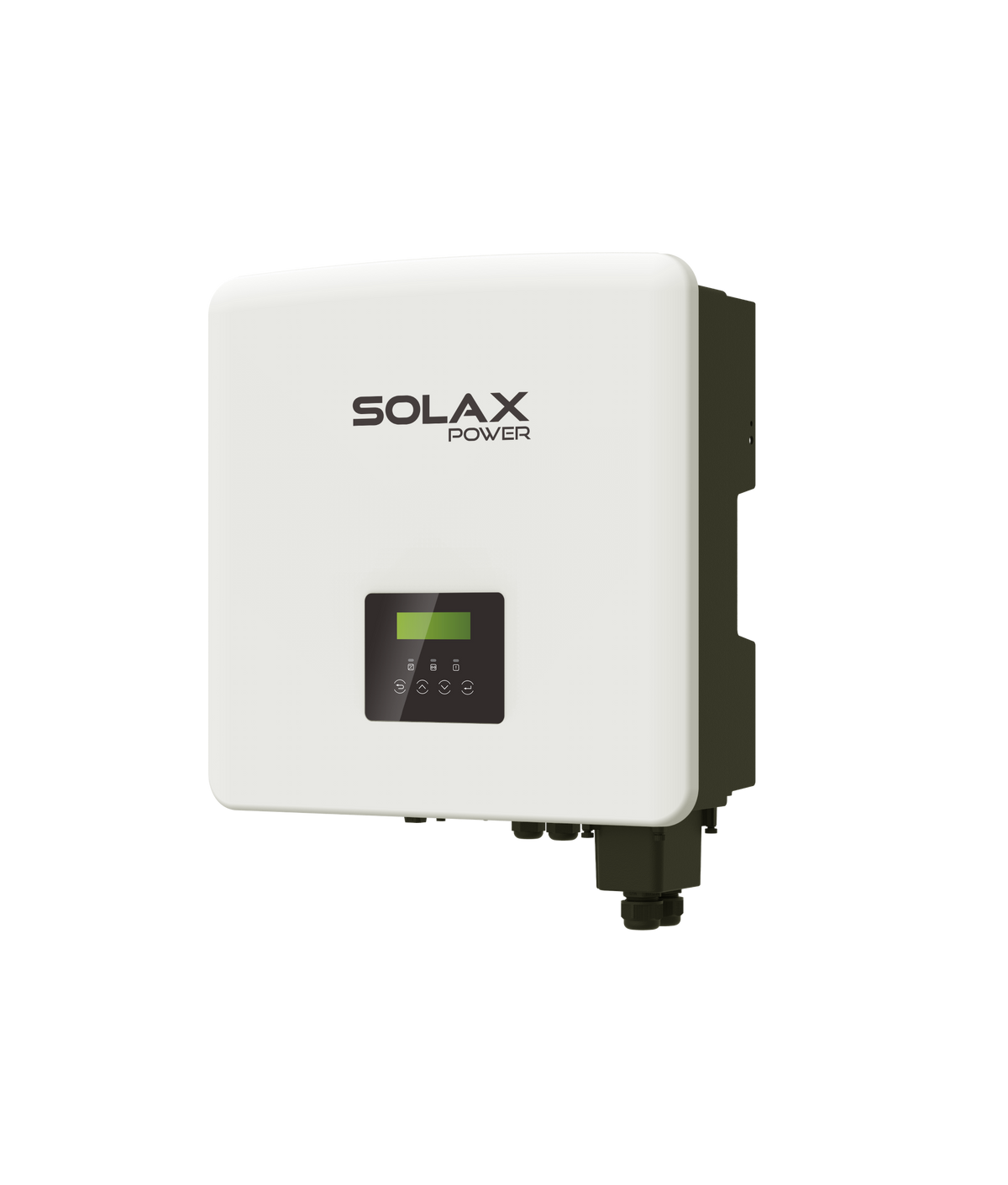

SolaX X3-FIT G4 RetroFit — 10 kW of three-phase retrofit with an 18 kVA ten-second EPS peak.
An AC-coupled battery inverter exists for one situation: there is already a working solar system, and replacing the inverter to add a battery would mean throwing away something that works. It sits on the AC side instead, charges the battery from the existing array or from the grid, and leaves the original inverter alone.
Please read before ordering
About the SolaX X3-FIT G4 RetroFit
The X3-FIT G4 is SolaX's three-phase retrofit. It moves up to 10 kW between the AC side and a 180 to 800 V battery, and carries an EPS output rated at the full machine that peaks at 18 kVA for ten seconds.
Maximum efficiency is 98.0 % with a European figure of 97.7 %, and battery charge and discharge efficiencies are 98.5 % and 97.5 %.
IP65, −35 to +60 °C with derating above 45, and quiet at under 45 dB.
What does this work with?
This is a three-phase AC-coupled battery inverter with a 180 – 800 V battery window and an EPS output.
The battery window is 180 – 800 V, lithium-ion or lead-acid, at 30 A maximum continuous. There is no PV input. The EPS function needs an external backup box, and capacity beyond one unit goes through an X3 EPS Parallel Box.
Battery, backup and expansion
The details that decide whether this suits the system:
- No PV input. Battery window 180 – 800 V, lithium-ion or lead-acid, 30 A maximum continuous charge and discharge.
- Maximum AC input apparent power is 20 kVA at 32 A; AC output is 10 kW, 11 kVA and 16.1 A.
- EPS is 10 kW nominal with an 18 kVA ten-second peak and a switch time under 10 ms. It requires an external backup box to be fully used.
- For more capacity, the X3-PBOX-60kW-G2 connects up to six AC-coupled inverters to 60 kW and the X3-PBOX-150kW-G2 up to ten to 150 kW.
- 503 × 503 × 199 mm and 30 kg, IP65, natural cooling at under 45 dB.
- −35 to +60 °C with derating above +45 °C, storage −40 to +70 °C, humidity 0 – 100 %, under 3,000 m.
- Meter optional, external control over RS485, Pocket Wi-Fi with Pocket LAN and 4G optional, DRM, USB upgrade and optional NTC.
- Internal consumption is under 40 W on standby and under 5 W idle.
Where this earns its place
The X3-FIT G4 RetroFit is specified most often for these jobs.
Things worth knowing about this listing
- An external backup box is required to make full use of the EPS function.
- To expand capacity, see the SolaX EPS Parallel Box options: the X3-PBOX-60kW-G2 connects up to six AC-coupled inverters to 60 kW, and the X3-PBOX-150kW-G2 up to ten to 150 kW.
SolaX X3-FIT-10.0-W technical data
Ordered with this more often than anything else
A storage system is never one part. These are the ones our customers add most often:
Questions we get asked about this inverter
Does it take an array?
No. It is AC coupled, so the array stays on the inverter that already converts it.
What do I need for the EPS output?
An external backup box; the EPS function cannot be fully used without one.
How do I go beyond 10 kW?
The X3 EPS Parallel Box G2: the 60 kW version connects up to six AC-coupled inverters, the 150 kW version up to ten.
What battery will it take?
Lithium-ion or lead-acid in a 180 to 800 V window, at 30 A maximum continuous.
How efficient is it?
98.0 % maximum and 97.7 % European, with 98.5 % battery charge and 97.5 % discharge efficiency.
Documents, advice and trade pricing
Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our storage range, our hybrid inverters and our batteries, or email sales@clearraysolar.com if you would like us to check a pairing before you order.
