Tesla Neurio W2 meter kit with 3 x 200A CTs and RS 485 Meter cable - ClearRaySolar
1 In Stock

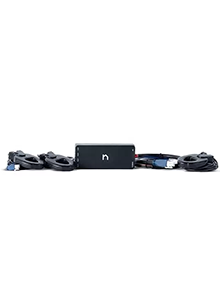

Tesla Neurio W2 meter kit with 3 x 200A CTs and RS 485 Meter cable

TES-DYNAMIC-POWER-MANAGEMENT-3PH
£360.79 ex. VAT
  • Secure Checkout
  • Tracked Delivery
UK StockDispatched from our own warehouse
Trade PricingVolume discounts for installers
Expert SupportSystem design help on request

Tesla Neurio W2 meter kit with 3 x 200A CTs and RS 485 Meter cable

This Tesla Neurio W2 meter kit comes with three 200 A CT clamps, one for each phase, plus the RS-485 meter cable that wires it to the charger. It is the three-phase form of the metering behind Tesla’s Dynamic Power Management: the meter watches L1, L2 and L3 where they enter the board, and a Gen 3 Wall Connector trims its charging current whenever the property’s own load leaves less headroom.

The kit in numbers

3 × 200 ACT clamps, one per phase
1,200 mmW2 CT lead length
120 mLongest RS-485 run
400 V wyeThree-phase with neutral

What's in the box

  • Neurio W2 meter kit
  • 3 × 200 A current transformers
  • RS-485 meter cable for the wired link to the Wall Connector
  • The Wall Connector itself
  • Wago 3-, 4- and 5-way lever nuts, which Tesla specifies for the harness splices
  • 1.5 mm² shielded twisted pair to reach from the board to the charger

Why three clamps

Tesla publishes its Neurio energy meter kit for Dynamic Power Management in two versions: 1938241-01-A with one CT and 1938241-02-A with three. A single clamp covers a single-phase board, and that version is our Wall Connector Dynamic Power Management Kit. On a three-phase supply every line conductor carries its own load, so each needs a clamp before the meter can see the true headroom. That matters because a three-phase Wall Connector on a 40 A breaker delivers 22.1 kW at 400 V, while dropping to a 20 A breaker caps it at 11 kW for good. Managing the load lets the charger keep the larger setting and back off only when the house is busy.

Three-phase wiring, phase by phase

Tesla requires the board to be dead before any of this starts. The meter needs 203 × 203 × 102 mm of room inside the enclosure, and its voltage leads land on a dedicated breaker of no more than 20 A: brown to L1, black to L2, grey to L3 and blue to the neutral bar. The three clamps then close round the incoming L1, L2 and L3 conductors with “Source this Side” facing the grid. Port order is not optional here. The L1 clamp may use port 1 or port 4, but L2 must go in port 2 and L3 in port 3, because each port takes its voltage reference from a fixed phase. Tesla also says to plug each CT into the meter before clamping it round a conductor.

At the charger end, the RS-485 cable is extended with shielded twisted pair, its red lead going to the red terminal and its black lead to the white one. Tesla warns that this polarity cannot be swapped once installed.

Commissioning

With solar switched off so every reading should be positive, the Wall Connector is commissioned in Tesla One on firmware 25.42.1 or newer, and the meter appears by itself. All three CTs are given the Conductor location, then the Max Conductor Limit is entered at 80% of the board’s rated limit. A quick proof is to set the limit low for a moment, switch on heavy loads and watch the charge rate fall.

Works with

Please Note: Powerwall 3 is not compatible with Neurio meter equipment

Part numbers
Tesla Neurio W2 meter kit with 3 x 200A CTs and RS 485 Meter cableTES-DYNAMIC-POWER-MANAGEMENT-3PH

Three-phase meter questions

Does it work on a three-phase delta supply?

No. Tesla supports Dynamic Power Management on 400 V three-phase wye with a neutral, not on delta (usually 230 V line to line) or open wye connections.

Can one kit look after two Wall Connectors?

Tesla lists the feature for sites with a single Wall Connector installed. Other layouts are not supported.

Will these clamps fit a Tesla Remote Meter?

No. Tesla states Neurio CTs are not compatible with its Remote Meter, and each CT works only with the meter it was designed for. A Powerwall 3 is metered with the Tesla Remote Energy Meter Kit instead.

What if a 1.2 m CT lead will not reach?

Tesla’s metering guide lists a premade 3.3 m extension for W2 clamps, part 1622289-00-x.

Can I buy the meter from another source?

Tesla says the energy meter for this feature has to come from Tesla, because it ships with the firmware Dynamic Power Management relies on.
