Out of stockSunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)
£1,369.47
ex. VAT
- Secure Checkout
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

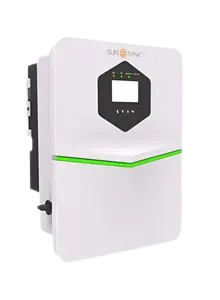

SunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)
- SunSynk Acure 8.0kW Single Phase Hybrid Inverter (White)
- Part No: SUN-ACURE-8.0
- Storage Systems - Hybrid Inverter
- Programmable, wireless smart switch (40 Amp switch included.)
- Max. 10 smart switches supported for Max power optimisation.
- Wireless CT coil facility.
- Built-in Bluetooth and Wi-Fi. (no external data logger).
- Built in LAN connection.
- Brand new UI enhancing accessibility for users of all levels.
- Built in Arc fault detection.
- Built in solar panel theft detection circuits.
- Has multi-colour LED strip offering real-time insights of the system.
- Up to 16 units can be connected in parallel.
- IP65 rated.
- Intelligent air cooling.
- 5-year Standard warranty.
The Sunsynk Acure is a next-generation hybrid inverter designed for smarter, safer, and more efficient energy management across solar, battery, and grid systems.
Product Features
Equipment warranty registration needs to take place within 7 (seven) days of commissioning of the project, failure to register the warranty may result in the warranty being made void.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
High Efficiency 97.6 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 8,000 W |
|---|---|
| Module Efficiency | 97.6 % |
| Battery Voltage | 40 - 60 V |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 150 V |
| Max MPPT Voltage | 425 V |
| Max Input Voltage | 500 V |
| Max DC Power | 12,800 W |
| Max AC Power (5 min) | 8,800 VA |
| Max DC Current | 32 + 32 A |
| Max DC Inputs | 4 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 630 mm |
|---|---|
| Width | 366 mm |
| Depth | 281.41 mm |
| Weight | 27.1 kg |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -40 °C to +60 °C, derating above +45 °C |
|---|
Warranty
| Warranty | 5 years, or 10 years when installed with a Sunsynk battery |
|---|
