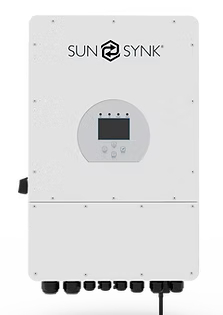

Sunsynk 10kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Sunsynk 1 IN STOCKReady for immediate dispatch

Sunsynk 10kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

SUN-10.0
£1,881.46 ex VAT £2,257.75 inc VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Technical Specifications
Rated Power (Pmax)10,000 W
Module Efficiency97.60 %
Battery Voltage40 - 60 V
MPPT Quantity3
Min MPPT Voltage150 V
Max MPPT Voltage425 V
Max Input Voltage500 V
Max DC Power15,000 W
Max AC Power (5 min)11,000 VA
Max DC Current26 + 26 + 26 A
Max DC Inputs6
Integrated DC SwitchYes
Height670 mm
Width420 mm
Depth233 mm
IP RatingIP65
Operating Temperature-40 °C to +60 °C, derating above +45 °C
Warranty5 years
View Full Datasheet

Sunsynk 10kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

Sunsynk · Classic single phase, SG02LP1

Sunsynk 10kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

Sunsynk Classic single phase, SG02LP1 — Three MPP trackers and 250 A of battery current on a single phase — the largest domestic Sunsynk before the MAX.

A hybrid inverter does three jobs a string inverter cannot. It converts solar DC to AC; it charges and discharges a battery on the DC side, which avoids the double conversion an AC-coupled battery pays for; and when the grid fails it islands the site and keeps the essential-load output alive from the battery.

Rated AC output
10,000 WSingle phase on-grid output
Backup output
10,000 WContinuous EPS power in a grid outage
Maximum PV input
15,000 WArray size this inverter accepts
Battery window
40 – 60 VThe architecture it takes
MPP trackers
3Independent roof planes
Peak efficiency
97.60 %Conversion efficiency at best
Warranty
5 yearsManufacturer cover
Overview

About the Sunsynk Classic single phase, SG02LP1

These are the big Classic units: three MPP trackers with two strings each, up to 18 kW of array on the 12 kW, and battery current of 220 A or 250 A. On a single-phase supply that is about as much system as can be built, and it is why they turn up on large houses and small workshops rather than on ordinary semis.

Sunsynk build these around two output terminals rather than one: an essential-load output that stays live in a power cut, and a non-essential-load output that does not. That split is why the range is specified so often for sites that actually want to keep working through an outage rather than merely to store cheap electricity.

Battery compatibility

Which battery does this inverter take?

This inverter takes Low voltage, 40 – 60 V, lead-acid or lithium-ion.

This model has a battery voltage window of 40 – 60 V, BMS communication over RS485; CAN.

This rule applies to the Sunsynk ECCO, Classic, Acure and MAX single phase, and the SG04LP3 three phase.

Charging strategy self-adapts to the battery BMS. Maximum charge and discharge current is model-specific and runs from 70 A on the 3 kW ECCO to 290 A on the 16 kW MAX.

What we stock that fits this inverter:

Sunsynk 5.32kWh IP65 Battery Complete with Isolator and CablesSunsynk's own LV battery, supplied complete.
Sunsynk 5.32kWh IP65 W5.3 Black Battery (Including Cable Sets)Wall-mounted IP65 version.
US5000 4.8kWh Li-Ion Solar Battery 48V (excl. brackets)A 48 V LV battery of the right architecture; confirm against Sunsynk's current approved list before ordering.
Low voltage and high voltage batteries are not interchangeable. A 48 V battery cannot be used on a high-voltage hybrid and a high-voltage stack cannot be used on a low-voltage one, whatever a general compatibility list says, and no adapter changes that. Solis put it plainly on their own list: installing a non-compatible battery will void the inverter warranty. If you are not certain, ask us and we will check it against your part number before you order.
For the installer

String design, battery limits and what is in the box

The details that decide whether this unit suits the job:

  • Battery is 48 V nominal, 40 – 60 V, lead-acid or lithium-ion, with an external temperature sensor and BMS self-adaptation. Maximum charge and discharge is 220 A on the 10 kW and 250 A on the 12 kW.
  • At 250 A the DC cabling and the battery's own continuous rating are usually what limit the design, not the inverter.
  • Three MPP trackers, two strings each, 26 A per tracker and 44 A Isc. 500 V maximum, 125 V start-up, 150 – 425 V MPPT window, 370 V rated.
  • Maximum PV input is 15 kW on the 10 kW and 18 kW on the 12 kW.
  • Off-grid peak is twice rated power for 10 seconds; maximum continuous AC passthrough is 60 A.
  • PV arc fault detection is integrated, with Type II surge protection on both DC and AC.
  • 36 kg net and 42 kg gross, 420 × 670 × 233 mm, IP65, intelligent air cooling at under 45 dB.
  • For Pylontech, REVOV or Hubble Lithium batteries the BMS cable is SUN-CAN-3M; for Freedom Won it is F-WON-CAN-SUN. Neither is included.
Applications

Where this hybrid earns its place

The Classic single phase, SG02LP1 is specified most often for these jobs.

Large single-phase housesUp to 18 kW of array on one unit.
Small workshops and farms250 A of battery current.
Split and shaded roofsThree independent MPP trackers.
Essential-load backupTwice rated power for 10 seconds.
Generator sitesStores energy from a diesel generator.
Phased expansionUp to 10 units in parallel.
Before you order

Things worth knowing about this listing

These notes come from us and from the manufacturer, and they are the ones that most often cause a problem after delivery:
  • A Wi-Fi dongle is included.
  • Compatible with most lithium-ion and lead-acid batteries.
  • The BMS cable is battery specific and is not included: SUN-CAN-3M for Pylontech, REVOV and Hubble Lithium, F-WON-CAN-SUN for Freedom Won. Ask us and we will send the right one with the inverter.
Technical specification

Sunsynk SUNSYNK-10K-SG02LP1 technical data

This model
Maximum PV input power15,000 W
Output, backup and performance
Rated AC output power10,000 W
Maximum apparent AC power11,000 VA
Rated AC output current45.5 / 43.5 A
Maximum AC output current45.5 / 43.5 A
Backup (EPS) continuous power10,000 W
Common to the range
Battery typeLead-acid or lithium-ion
Battery voltage range40 – 60 V
Charging curve3 stages with equalisation
External temperature sensorYes
Charging strategy for lithium-ionSelf-adapting to the battery BMS
Maximum PV input voltage500 V
MPPT voltage range150 – 425 V
Start-up voltage125 V
Rated PV input voltage370 V
Maximum operating PV input current26 + 26 + 26 A
Maximum PV Isc44 + 44 + 44 A
Number of MPP trackers3
Strings per MPP tracker2
Maximum continuous AC passthrough60 A
Backup (EPS) peak power2 × rated power for 10 s
Power factor0.8 leading to 0.8 lagging
Rated input / output voltage220 / 230 V, 0.85 Un – 1.1 Un
Rated grid frequency50 / 45 – 55 Hz, 60 / 55 – 65 Hz
Grid connection formL + N + PE
Total harmonic distortion<3 % of nominal power
DC current injection<0.5 % In
Maximum efficiency97.60 %
European efficiency96.50 %
MPPT efficiency>99 %
Surge protection levelType II (DC), Type II (AC)
Overvoltage categoryOVC II (DC), OVC III (AC)
Operating temperature range−40 °C to +60 °C, derating above +45 °C
CoolingIntelligent air cooling
Noise emission<45 dB
Battery communicationRS485; CAN
Weight36 kg net, 42 kg gross
Dimensions (W × H × D)420 × 670 × 233 mm
Ingress protectionIP65
InstallationWall mounted
Compliance and warranty
Grid connection standardsEN 50549-1, AS/NZS 4777.2, NRS 097-2-1; other connections on request
Safety and EMCIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Warranty5 years
Specification sourceSingle phase HI 10/12 kW datasheet v5, 5 June 2024
Goes with this

Ordered with this inverter more often than anything else

A hybrid is the middle of a system, not the whole of it. These are the parts our customers add most often:

Sunsynk - SDM120CT-M - Digital Meter (Single-Phase)Single-phase Eastron SDM120CT meter, for self-consumption and export control.
Sunsynk Klik Device For Connecting 2 Different Batteries To A Single Hybrid InverterSunsynk Klik: connects two different battery brands to one inverter.
Sunsynk Long Cable Set for Battery to InverterLong battery-to-inverter cable set.
Frequently asked questions

Questions we get asked about this inverter

How much battery can it charge?

220 A on the 10 kW and 250 A on the 12 kW. That is a large bank by domestic standards, and the DC cabling has to be sized for it.

Which BMS cable do I need?

SUN-CAN-3M for Pylontech, REVOV and Hubble Lithium; F-WON-CAN-SUN for Freedom Won. Ask us and we will get the right one to you with the inverter.

How many MPP trackers?

Three, each taking two strings at 26 A, which is what allows 15 kW to 18 kW of array across several roof planes.

Is it quiet enough for a house?

It is fan cooled at under 45 dB, so a utility room or garage rather than a hallway.

ClearRay Solar

Documents, advice and trade pricing

Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our hybrid inverter range, our batteries and our solar panels, or email sales@clearraysolar.com if you would like us to check a battery pairing or a string design before you order.

High Efficiency 97.60 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
