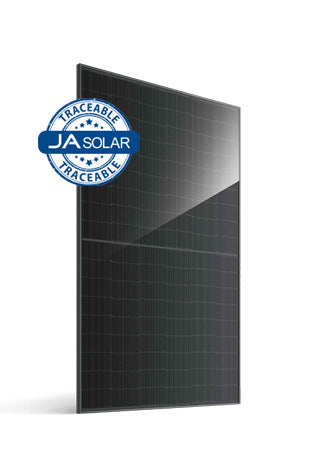

10 x JA Solar 460W N-Type Double Glass Monofacial Traceable All Black Solar Panel
S6 Mini 3,6kW 1MPPT 1Ph Inverter - with DC isolator
28 x Solar Roof Tegalit Anchor for Plain tile (Screws are included)
6 x Clenergy SolarRoof Pro Solar PV Mounting Rail 4600mm
24 x Clenergy Universal Solar Panel Mid/End Clamp 30–46mm Black
4 x Clenergy SolarRoof Pro Solar PV Mounting Rail Connector
8 x Clenergy Pro Rail Cap Black.
Projoy DC Isolator 25A 2pole 1string
IMO Stag AC Isolator 3 Pole 20 Amp
Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover
Cableworld 4mm2 single-core DC cable 50m - Black
4mm2 single-core 50m - Red
20 x Staubli MC4 Female Connector - Single - 6 mm2-32.0014P0001-UR
20 x Staubli MC4 Male Connector - Single - 6 mm2-32.0015P0001-UR
PV on Roof and Hazard Labels Pack
10 x JA Solar 460W N-Type Double Glass Monofacial Traceable All Black Solar Panel
ClearRay Solar 28 IN STOCK

Solis 3.6kW Solar Kit with 10 x 460W Solar Panels

£1,370.40 ex VAT

How many panels do you need?

Secure Checkout 14-Day Returns Tracked Delivery
Lower DegradationBetter long-term performance
High ReliabilityBuilt for all weather conditions
Greater Energy YieldMore power from your roof

ClearRay Solar Solis 3.6kW Solar Kit with 10 x 460W Solar Panels

A complete 4.60 kWp solar kit for a single-phase home on a plain-tile roof, built around the Solis S6 Mini 3,6kW 1MPPT 1Ph Inverter - with DC isolator. Every part from the roof to the consumer unit is listed below, checked by our configurator.

4.60 kWpSolar array
3.6 kWSolar inverter
Solar onlyNo battery
~4,400 kWhEstimated yearly yield
10Panels, one string
447 VString voltage, under 580 V
G98Notify the DNO after fitting
1 phaseSingle-phase supply

What's in the kit

Solar panels 4.60 kWp

Inverter 3.6 kW string

Roof mounting Clenergy, plain-tile

Electrical and protection

  • The AC cable from the inverter to the AC isolator, generation meter and consumer unit (we don't sell general AC cable): 3-core, sized by your electrician for the ~16 A output and the run length.
  • Installation, scaffolding and the G98 notification

Design checks

  • String voltage 447 V on the coldest day, under the inverter's 580 V limit
  • 4.60 kWp on a 3.6 kW inverter, a 1.28 ratio, inside the tool's limits
  • One mounting brand across the roof, as MCS 012 requires
  • Output within G98's 16 A per phase
  • Every run covered from the roof to the consumer unit
Different roof, more panels or a bigger battery?Open this kit in the configurator and change anything.
Customise this kit
MCS ApprovedEligible for UK grants and installations

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Inverter: Data Sheet S6-GR1P(0.7-3.6)K-M - EN Inverter: G98 Certificate Fully type tested device for compliance with G98 Inverter: G98 Certificate NI Inverter: G99 Certificate
