SolaX Smart 22kW EV Charger G2 - Tethered
SolaX Smart 22kW EV Charger G2 - Tethered

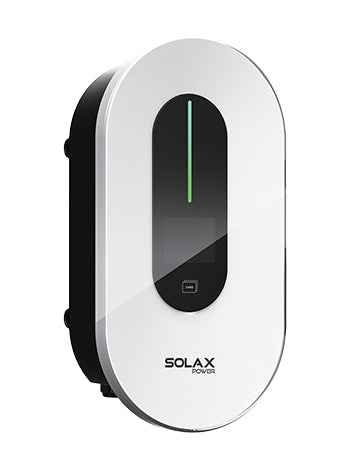

The SolaX Smart EV Charger G2 is a 22 kW electric vehicle charge point, supplied with type 2 tethered, 6.5 m cable.
Specification
| Rated power | 22 kW |
| Supply | 400 V |
| Phases | Three phase |
| Charging current | 6 to 32 A |
| Connector | Type 2 tethered, 6.5 m cable |
| Weight | 6.5 kg |
| Charging outlet | Type 2 plug or Type 2 socket (IEC 62196) |
| Cable length | 6.5 m |
| Communication | WiFi / Ethernet / 4G optional / RS485 × 2 |
| Protocol | OCPP 1.6J, Modbus TCP, Modbus RTU, Cloud API |
| Authentication | Plug and charge, RFID (ISO 14443-A), app |
| Built-in PEN fault technology | According to BS 7671:2018 |
| Integral earth leakage protection | 30 mA AC and 6 mA DC |
| Dimensions (W × H × D) | 390 × 206 × 139 mm |
| Degree of protection | IP65 plug type, IP54 socket type |
| Impact protection | IK10 housing, IK08 screen |
| Operating temperature | −30 °C to +50 °C |
| Installation | Wall or optional pedestal |
| Standard | IEC 61851-1:2017, IEC 62196-2:2016 |
| Warranty | 3 years |
Installing an EV charge point in the UK
A home charge point is a fixed electrical installation and must be installed by a competent person to BS 7671. Two questions decide most of the job. First, does the unit have integrated PEN fault protection? On a TN-C-S (PME) supply that is what removes the need for an earth rod and the groundworks that come with it. Second, can the existing supply carry another 32 A? That is what load balancing exists to manage — the charger backs off when the house is drawing heavily, instead of taking out the main fuse.
Every charge point sold in Great Britain must also meet the Electric Vehicles (Smart Charge Points) Regulations 2021, which require default off-peak charging hours, a randomised start delay, and measures against unauthorised access.
Additional suggested items
Usually ordered at the same time:
- SolaX EVC Pedestal - Buy to Order — free-standing mount where there is no suitable wall
- 6mm2 Five Core Cat5e EV Ultra Cable with SWA Sleeve - 10m — power and Cat5e data in one armoured cable, for the run out to the charger
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
