SolisOut of stock
S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
£179.96
ex. VAT
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

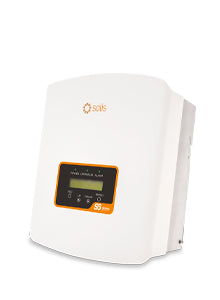

S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
- S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
- Part No: SOL-S6-GR1P-1.5K-M-EU
- Inverters - Main Units
- Rating: 1,500W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 2.3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy, Ireland)
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
High Efficiency 96.6 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 1.5 kW |
|---|---|
| Module Efficiency | 96.6 % |
| MPPT Quantity | 1 |
| Min MPPT Voltage | 50 V |
| Max MPPT Voltage | 500 V |
| Max Input Voltage | 600 V |
| Max DC Power | 2.3 kW |
| Max AC Power (5 min) | 1.65 kVA |
| Surge AC Power (1 sec) | 1,650 W |
| Max DC Current | 14 A |
| Max DC Inputs | 1 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 373 mm |
|---|---|
| Width | 310 mm |
| Depth | 160 mm |
| Weight | 7.4 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
- Application Note Solis Datalogger Guide
- Application Note Solis Inverters - RCD - Recommendation
- CE Declaration of Conformity EN61000_Certificate of conformity (2021)
- Data Sheet S6-GR1P(0.6-3.6)K-M - DE
- Data Sheet S6-GR1P(0.7-3.6)K-M - EN
- EN50549
- EN50549 Ireland Solis mini
- G100 certification SOL-1.5-MINI-S6-DC
- G98 Certificate
- G98 Certificate NI
- G99 Certificate
- G99 Certificate NI
- Installation Manual S6-GR1P(0.7-3.6)K-M
- Installation Manual Solis Mini (700-3600) 4G S6 DE (German)
- User Manual S6-GR1P(0.7-3.6)K-M - DE
- User Manual Solis Service Sheet
- VDE 4105 AR Dyness - DL5.0C
- Warranty Europa 2023 - DE (German)
- Warranty Gwarancja 2022 (Polish)
- Warranty Solis warranty EN
- Warranty Solis_Inveter_Warranty_Global - EN
