SolisOut of stock
Solis 25kW S6 3PH Grid-Tied Inverter - 3-MPPT
£1,024.03
ex. VAT
- Secure Checkout
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

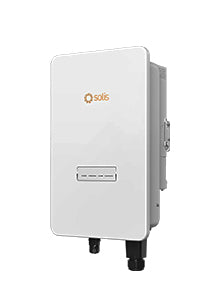

Solis 25kW S6 3PH Grid-Tied Inverter - 3-MPPT
- Solis 25kW S6 3PH Grid-Tied Inverter - 3-MPPT
- Part No: SOL-S6-GC3P25K03-NV-ND
- PV Inverters - Main Units
- Rating: 25,000W
- Phases: 3
- 42A MPPT with 21A string currents for high power modules
- 150% PV Power Oversizing
- Dual independent RS485 ports, supporting communication with 3rd party monitoring devices
- Integrated AFCI (DC arc-fault circuit protection)
- Type ll surge protection for AC and DC
- Generator integration ready
- 5-year extendable warranty
Solis Series 6 Grid Tied Inverter
Features:
High Efficiency 98.1 %More power from the same roof space
Electrical
| Rated Power (Pmax) | 25,000 W |
|---|---|
| Module Efficiency | 98.1 % |
| Battery Voltage | 180 V |
| MPPT Quantity | 3.0 |
| Min MPPT Voltage | 200 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 37,500 W |
| Max AC Power (5 min) | 25,000 W |
| Surge AC Power (1 sec) | 27,500 W |
| Max DC Current | 96 A |
| Max DC Inputs | 6.0 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 0.82 m |
|---|
- IEC60068 Solis S6-GC3P(25-36)K03-NV-ND EN
- TOR-R25 Austria Solis S6-GC3P(15-36)K03-NV-ND EN
- Application Note Solis AC Couple - Frequency Shift Setting
- Application Note Solis AC Couple Victron set up Guide
- Application Note Solis and EPM Quick Setup Guide
- Application Note Solis Ramp Up Rate Set-Up
- CE Declaration of Conformity Solis S5-GC(25-40)K
- CE Declaration of Conformity Solis S5-GC(25-40)K
- CE Declaration of Conformity Solis S5-GC(25-40)K EU
- Data Sheet S6-GC3P(25-3)K03-NV-ND
- Data Sheet Solis S6 GC3P(25-36)K-ND
- IEC Certificate Solis S5-GC(25-40)K (English, German)
- Independant Test Report IEC61000 Solis S6-GC3P(25-36)K03-NV-ND EN
- Independant Test Report IEC62109 Solis S6-GC3P(25-36)K03-NV-ND EN
- Installation Manual Solis S6-GC3P(25-36)K03-NV-ND EN
- NRS-2017 Solis S5-GC(25-40)K
- TUV Certificate EN50549 Solis S6-GC3P(15-36)K03-NV-ND EN
- User Manual Frequency Shift Setup
- User Manual Solis S5-GC(25-50)K - DE
- User Manual Solis Service Sheet
- VDE-AR-N 4105:2018 Solis S6-GC3P(15-36)K03-NV-ND EN
- Warranty Europe 2021
- Warranty Solis_Inveter_Warranty_Global - EN
- White Paper Migrating to New Solis Cloud Platform
