High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

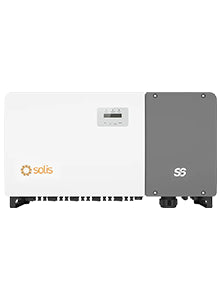

Solis 125kW S6 3 Phase 10x MPPT
- Solis 125kW S6 3 Phase 10x MPPT
- Part No: SOL-S6-GC125K
- Inverters - Main Units
- Rating: 125,000W
- Phases: 3
- Max. PV DC Power of 165kW
- 10 MPPT’s with two string inputs per MPPT rated at 16A
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
- Maximum AC output power of 121kW
- Integrated AFCI (DC arc-fault circuit protection), DC Switch and DC reverse-polarity protection
- Intelligent monitoring - Smart I-V Curve Diagnosis - Supports PLC,GPRS & Wi-Fi communication
- 5-year standard warranty - extendable to up to 20 years
Solis S6 125kW 3 Phase Grid Tied Inverter with 10x MPPT,DC SW,400VAC, AFCI 2.0, SPD Type 2 Certified, C5 Protection
Product Features:
Register on SolisCloud, to support remote upgrade and control.
UK: G99 Certified.
Installer Notes:
UK:Please note an EPM is still required for the S6-GC(80-125)k
High Efficiency 98.7 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 125 kW |
|---|---|
| Module Efficiency | 98.7 % |
| MPPT Quantity | 10 |
| Min MPPT Voltage | 160 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 165,000 W |
| Max AC Power (5 min) | 125 kVA |
| Surge AC Power (1 sec) | 121,000 W |
| Max DC Current | 5 x |
| Max DC Inputs | 20 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 014 mm |
|---|---|
| Width | 1 mm |
| Depth | 567 mm |
| Weight | 96 kg |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
- S6-GC80-125K
- Application Note Solis AC Couple - Frequency Shift Setting
- Application Note Solis and EPM Quick Setup Guide
- Application Note Solis Datalogger Guide
- Application Note Solis Ramp Up Rate Set-Up
- CE Declaration of Conformity Sol S6 GC(80-125)K EN
- Data Sheet S6 80-125K
- Data Sheet Solis S6-GC80-125K NL (Dutch)
- Data Sheet Solis S6-GC80-125K PL (Polish)
- Data Sheet Solis S6-GC80-125K SWE (Swedish)
- Data Sheet SOL-S6-GC(80-125)K DE (German)
- EN50549 Sol S6 GC(80-125)K EN-DE
- IEC Certificate IEC 62109 Sol S6 GC(80-125)K EN-DE
- Installation Manual Solis S6-GC(75-125)K
- NRS 097 -2027
- TUV Certificate IEC61000 Solis S6-GC(75-125)K
- TUV Certificate IEC62109 Solis S6-GC(75-125)K EN DE (English, German)
- TUV Certificate Unit Certificate Sol S6 GC(80-125)K EN
- User Manual GC 80-125K
- VDE 4105 AR Sol S6 GC(80-125)K EN-DE
- Warranty Solis_Inveter_Warranty_Global - EN
