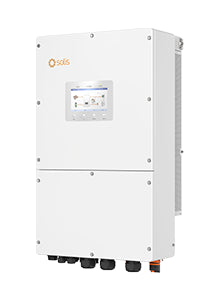

Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
£2,191.15
ex. VAT
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
- Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
- Part No: SOL-S6-EH3P30K-H
- Storage Systems - Hybrid Inverter
- Allowable PV of up to 60kW, on the 180-1000V MPPT.
- 3-MPPTs, rated at 40A each, with 2-string inputs each allowing for 6 strings of high power/current PV modules.
- Supports Grid and Generator AC inputs.
- Parallel up to 6 x inverters for up to 300kW of back-up load.
- Battery Charge and Discharge current of up to 140A.
- UPS transfer time of less than 10ms.
- 160% surge power for 2s to accommodate inductive loads.
- Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
- LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
- Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
- Current transformer ESCT-T50-300A/5A included in product packaging
Solis Three Phase High Voltage Energy Storage Hybrid Inverter
Introducing the Solis S6-EH3P(30-50)K-H Series. High voltage, three-phase energy storage for commercial applications.
Features:
Dyness stack 100 compatibility of up to 13 batteries per stack without exceeding the 800V battery range.
Important
The inverter supports a maximum battery charge and discharge of 140A. As each of the two battery ports support a maximum of 25mm^2 cable/70A. If you require the 140A from a single battery/battery stack, you are required to connect your battery cables to a common bus bar for positive and negative and take a 25mm^2 cable to each battery port on the inverter. Setting 1 BAT 2 DC on your inverter battery settings and connecting to BMS port 1.
High Efficiency 97.8 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 30 kW |
|---|---|
| Module Efficiency | 97.8 % |
| Battery Voltage | 150 - 800 V |
| MPPT Quantity | 3 |
| Min MPPT Voltage | 150 V |
| Max MPPT Voltage | 850 V |
| Max Input Voltage | 1,000 V |
| Max DC Power | 60 kW |
| Max AC Power (5 min) | 30 kVA |
| Max DC Current | 3 x 40 A |
| Max DC Inputs | 6 |
| Integrated DC Switch | Optional |
Mechanical
| Height | 880 mm |
|---|---|
| Width | 530 mm |
| Depth | 290 mm |
| Weight | 73 kg |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
- VDE-AR-N 4110 Solis S6 EH3P(30-50)K-H EN DE (English, German)
- Application Note Solis Datalogger Guide
- Application Note Solis Hybrid winter guide EN 2024
- Application Note Solis Winter Hybrid guide DE 2024 (German)
- Data Sheet Solis S6-EH3P(29.9-50)K-H - DE
- Data Sheet Solis S6-EH3P(29.9-50)K-H - NL
- Data Sheet Solis S6-EH3P(30-50)K-H - EN
- Data Sheet Solis S6-EH3P(30-50)K-H - PL
- Installation Manual Solis S6-EH3P29.9-50K-H (German)
- Installation Manual Solis_Manual_S6-EH3P(30-50)K-H_EUR_V1.2
- NRS-2017 8 to 10KW
- TUV Certificate JA Solar Compatibility Approval Letter
- Warranty Solis Warranty Europe 2025 UK only
