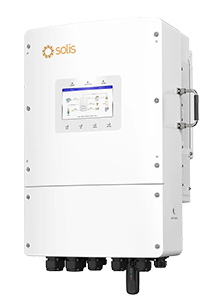

Solis 10kW Three Phase Low Voltage Hybrid Inverter
£1,300.41
ex. VAT
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Solis 10kW Three Phase Low Voltage Hybrid Inverter
- Solis 10kW Three Phase Low Voltage Hybrid Inverter
- Part No: SOL-S6-EH3P10K-NV-YD-L-UK
- Storage Systems - Hybrid Inverter
- Generator-compatible to extend backup duration during grid power outage
- Multiple inverters can operate together to form a microgrid
- Supports dual backup ports for intelligent control of critical and non-critical loads
- 10 seconds of 200% overload capability
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
- The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
- Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
Solis Three phase LV Energy Storage Inverter
Features:
Attention: This inverter is now certified for Belgium!!
High Efficiency 97.5 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 10 kW |
|---|---|
| Module Efficiency | 97.5 % |
| Battery Voltage | 40 - 60 V |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 200 V |
| Max MPPT Voltage | 850 V |
| Max Input Voltage | 1,000 V |
| Max DC Power | 16 kW |
| Max AC Power (5 min) | 10 kVA |
| Max DC Current | 20 A / 40 A |
| Max DC Inputs | 6 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 660 mm |
|---|---|
| Width | 430 mm |
| Depth | 305 mm |
| Weight | 42 kg |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
- Application Note Solis Datalogger Guide
- Application Note Solis Winter Hybrid guide DE 2024 (German)
- Data Sheet Solis 3PH LV Hybrid - DE (German)
- Data Sheet Solis 3PH LV Hybrid - EN
- Data Sheet Solis 3PH LV Hybrid - NL (Dutch)
- Data Sheet Solis 3PH LV Hybrid - PL (Polish)
- EN50549 Poland Solis S6-EH3P(8-15)K-NV-YD-L
- EN50549 Solis S6-EH3P(8-15)K-NV-YD-L
- User Manual Solis S6-EH3P(8-15)K-NV-YD-L - EN
- VDE-AR-N 4105:2018 Solis S6-EH3P(8-15)K-NV-YD-L
- Warranty Europa 2023 - DE (German)
- Warranty Solis Warranty Europe 2025 UK only
