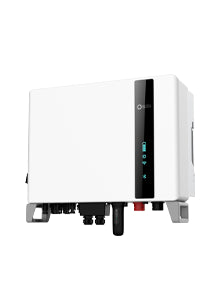

Solis S6 8kW Three Phase Hybrid Inverter with 3PH Meter

Solis S6 8kW 3PH Hybrid Inverter

• 4 MPPTs, suitable for residential rooftop installations with multiple array orientations
• Supports Unbalanced and Half-Wave Loads on the Grid Port and on the Backup Port
• Compatible with multiple brands of battery models giving customers multiple battery options
• Supports up to 10 units in parallel on Grid and Backup. Suitable for small to medium level commercial energy storage systems
• Supports pure off grid applications with generator communication support
• Multiple working modes to meet different use case scenarios
• Controllable and Upgadeable via the SolisCloud App to avoide site visits
• Up to 16A of MPPT current input to support 182mm/210mm solar panels
• Supports 1.6 DC:AC ratio to connect more PV capacity to the energy storage system
• Up to 50A/10kW max charge/discharge rating with industry highest level 10kW of backup loads support capability
• UPS level switching time (<10ms) supporting critical loads all the time
• High PV charge efficiency to prevent excess PV loss
• Safety protection with integrated AFCI function, which actively detects arc faults in the PV Array
• Natural convection design without external fans

Please note:

• The inverter is supplied including the S2-WL-ST data logger stick (WiFi & LAN) and a 3PH meter from Eastron
