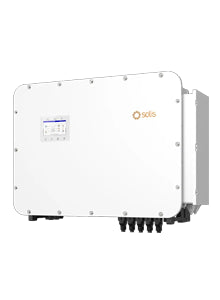

Solis S6 125kW 3 Phase Hybrid Inverter
Solis S6 125kW 3 Phase Hybrid Inverter
Solis S6 125kW 3 Phase Hybrid Inverter
Solis S6-EH3P(80-125)K10-NV-YD-H — Ten MPP trackers, 200 A of battery current and 200 % DC oversizing for commercial storage.
A hybrid inverter does three jobs a string inverter cannot. It converts solar DC to AC; it charges and discharges a battery on the DC side, which avoids the double conversion an AC-coupled battery pays for; and when the grid fails it islands the site and keeps a backup circuit alive from the battery.
About the Solis S6-EH3P(80-125)K10-NV-YD-H
At 80 to 125 kW this is a commercial and industrial machine. Ten MPP trackers with twenty strings mean a large mixed-orientation roof can be brought into one inverter, and PV input up to 200 % of rated DC power means the array can be sized for winter yield rather than for the inverter nameplate.
Battery current is the number that matters for arbitrage: 200 A across two independent ports, 100 A each, into a 300 – 950 V stack built from 100 Ah to 314 Ah cells. That is what makes peak-valley trading and frequency response worth doing on a site this size.
The smart port accepts other energy sources besides PV — grid-tied inverters, diesel generators from 25 kVA to 125 kVA, even wind — so an existing generating asset can be brought under one controller rather than run alongside it.
Which battery does this inverter take?
This inverter takes High voltage, roughly 120 – 800 V depending on model.
This model has a battery voltage window of 300 – 950 V, a maximum charge or discharge current of 200 A, 100 A + 100 A, BMS communication over CAN / RS485.
Battery option to select when commissioning: PYLON_HV for Pylontech; otherwise "Lithium Battery HV".
Models the manufacturer names as compatible: Pylontech Force-H1-V2, Force-H2-V2, Force-H3, PowerCube-M1C/M2/M3A-100/M3A-180/M5/M7, PowerCube-XH series and Pylontech M1; plus Pytes HV48100, Raystech, Renon Xtreme and others.
What we stock that fits this inverter:
String design, battery limits and what is in the box
The details that decide whether this unit suits the job:
- Battery is high voltage lithium, 300 – 950 V, two ports at 100 A each, 200 A total. Compatible with 100 Ah to 314 Ah cells.
- Ten MPP trackers, twenty strings, 42 A per tracker and 60 A Isc, 150 – 950 V MPPT window and a 1,000 V maximum.
- Usable PV input equals the recommended array: 160 kW, 200 kW and 250 kW respectively — 200 % of rated AC.
- Backup overload is layered: 1.2 × rated for 10 minutes, 1.4 × for 100 s, 1.6 × for 10 s and 2 × for 200 ms on the 80K and 100K; the 125K drops the 10-minute step.
- Up to 10 units in parallel. Above six, Solis recommend a power distribution cabinet.
- 1,174 × 814 × 400 mm and 170 kg — plan the lift and the wall or frame before it arrives.
- Maximum AC input current is 250 A. Maximum power per phase is 26.66 kW, 33.33 kW and 41.66 kW respectively.
- The datasheet is marked Preliminary. Ask us to confirm any figure a design or a DNO application depends on.
Where this hybrid earns its place
The S6-EH3P(80-125)K10-NV-YD-H is specified most often for these jobs.
Things worth knowing about this listing
- Compatible with 100 – 340 Ah battery modules. Supports battery current up to 200 A for faster charging, 160 % backup overload, and two independent battery connections for flexible configuration.
Solis 125K technical data
Ordered with this inverter more often than anything else
A hybrid is the middle of a system, not the whole of it. These are the parts our customers add most often:
Questions we get asked about this inverter
How much battery can it take?
Two ports, 100 A each, on a 300 – 950 V stack, and Solis quote compatibility with 100 Ah to 314 Ah cells. That is a large stack by domestic standards and the reason this unit is specified for arbitrage rather than self-consumption.
Can it work alongside an existing grid-tied inverter?
Yes. It supports AC coupling as well as DC, and the smart port accepts other sources including generators and wind, so an existing PV system does not have to be replaced.
How many can be paralleled?
Up to ten. Above six units Solis recommend one of their power distribution cabinets rather than direct paralleling.
Why does the source line say Preliminary?
Because the datasheet Solis published for this range carries a Preliminary watermark. We would rather tell you that than present provisional figures as final. Ask us and we will confirm any number you are designing to.
Documents, advice and trade pricing
Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our hybrid inverter range, our batteries and our solar panels, or email sales@clearraysolar.com if you would like us to check a battery pairing or a string design before you order.
Three figures govern it, all in the Technical Specifications: the MPPT voltage range, the maximum input voltage and the maximum DC power. Tell us which panel you're pairing it with and we'll confirm the string layout.
G98 covers installations up to 3.68kW per phase and is notified to your DNO after commissioning. Anything larger needs G99 approval agreed beforehand. We can flag which one your design falls under.
A hybrid inverter takes a DC-coupled battery directly. A standard string inverter needs an AC-coupled battery alongside it. The Technical Specifications show which type this unit is.
Yes, up to the maximum DC power figure in the specifications. Modest oversizing is normal practice - it lifts output in winter and at either end of the day, at the cost of brief clipping at midday peak.
An MPPT tracks the optimum operating point for a string of panels. You want one per roof orientation or pitch, because panels facing different directions on a single tracker drag each other down.
