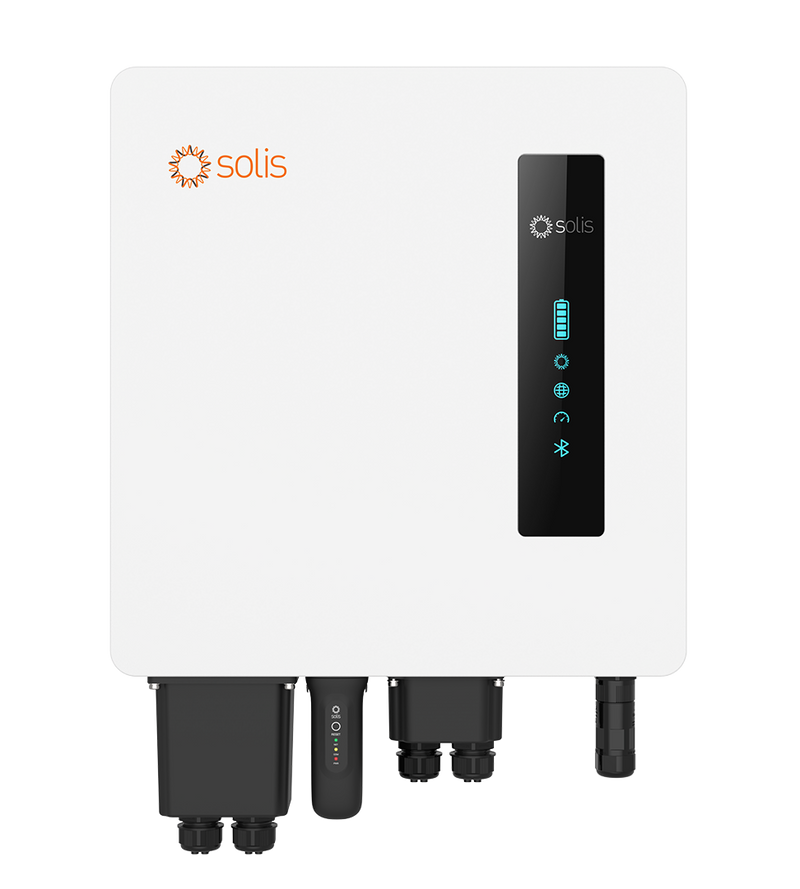

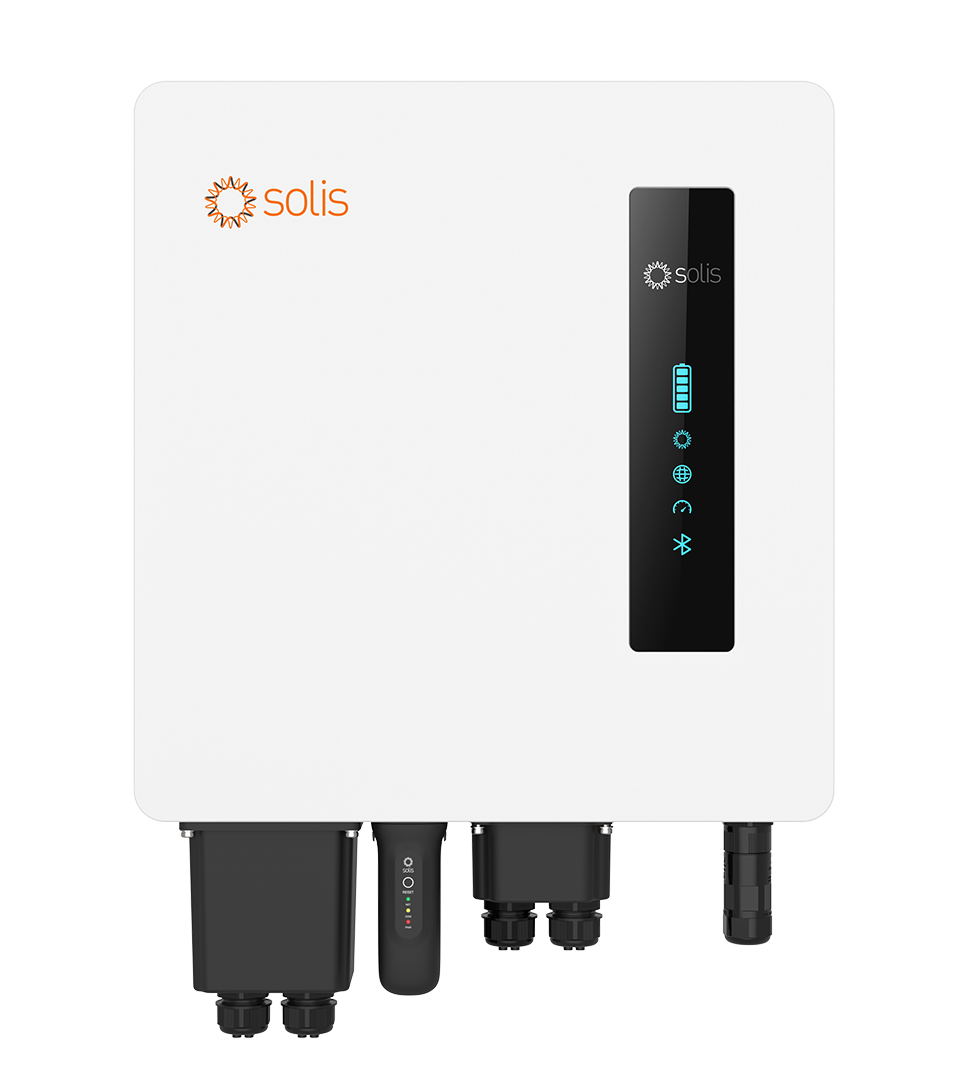

Solis Single Phase 6kW Low Voltage AC-Coupled Inverters
- Solis Single Phase 6kW Low Voltage AC-Coupled Inverters
- Part No: SOL-S6-EA1P6K-L
- Storage Systems - Charger-Inverter
- Supports Peak Shaving Mode Industry leading to a max 125A/6kW max charge/discharge rating
- Provide intelligent time of use solution together with the monitoring group
- Increased battery protection and operation features to extend battery life
- Real-time battery monitoring, remote upgrade, and battery healing function to prolong battery life
- 40-60V battery voltage range
- 19.9kg weight
- 1P66 Ingress protection
S6-EA1P(3.6-6)K-L series is a new generation of AC coupled products, designed to provide photovoltaic energy storage upgrading solutions for the built grid-tied system, so that it has energy storage and emergency power supply capabilities.
The S6 EA1P range comes with 2 x CTs in the box. The main CT can be extended to 15m. If the run from power source to inverter exceeds 15m then the SOL-METER-1PH-EASTRON is required.
Electrical
| Rated Power (Pmax) | 6 kW |
|---|---|
| Battery Type | Li-ion |
| Battery Voltage | 40 - 60 V |
| Max AC Power (5 min) | 6 kVA |
Mechanical
| Height | 465 mm |
|---|---|
| Width | 440 mm |
| Depth | 192 mm |
| Weight | 19.9 kg |
| IP Rating | IP66 |
