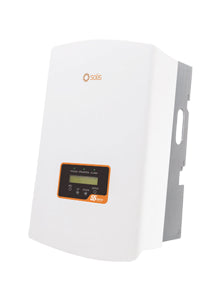

Solis 8kW S5 3 Phase Dual MPPT - DC
Solis13 In Stock

Solis 8kW S5 3 Phase Dual MPPT - DC

SOL-S5-GR3P-8K-DC
£574.10 ex. VAT
Pack size: Single
  • Secure Checkout
  • Next Working Day(Usually)
  • Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis 8kW S5 3 Phase Dual MPPT - DC

  • Rating: 8,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.5%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 2
  • Maximum AC output power of 8.8kW
  • Max PV DC Power of 12kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

Register on SolisCloud, to support remote upgrade and control.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.

Solis S5 8kW Three-Phase Inverter, model S5-GR3P8K

8 kW at a glance

12 kWPV maximum
98.5%Max efficiency
11.5 APer phase, rated
180 VStart-up

A mid-size three-phase inverter for larger houses, farm buildings and workshops. Up to 12 kW of panels, still a G98 connection.

String design

There are two independent MPPTs, 16 A and one string each, with a 20 A short-circuit rating. Tracking covers 160–1,000 V and the input limit is 1,100 V. Two roof faces or ground rows can each have their own string. Twenty-four 500 W panels, twelve per tracker, fill the 12 kW recommendation.

Built in vs separate

  • DC switch in the inverter
  • Surge protection (Type II) for DC and AC
  • Integrated AFCI, activation required
  • Export control: a meter for one inverter
  • Data logger (not supplied)

Grid connection

G98 still applies at 8 kW

Rated output of 11.5 A per phase keeps it under the 16 A per-phase limit (11.04 kW over three phases). The G98 certificate is in the Documents tab.

Commonly added

Part numbers
SingleSOL-S5-GR3P-8K-DC
Pack of 3SOL-S5-GR3P-8K-DC-3
Pack of 6SOL-S5-GR3P-8K-DC-6

Buying more than one

Pack Units Price Per unit Saving
Single 1 £574.10 £574.10 —
Pack of 3 3 £1,652.76 £550.92 4.0%
Pack of 6 6 £3,269.81 £544.97 5.1%

Prices exclude VAT. Per-unit figures are worked out from the pack price.

Your questions

Can the two strings face different directions?

Yes, each has its own tracker, so an east and a west string are optimised separately.

What maximum AC current should the circuit handle?

12.7 A per phase.

Will it work on a standard UK three-phase supply?

Yes. The datasheet lists 3/N/PE at 230/400 V, as well as 220/380 V.

How is the 8 kW sold in bulk?

Packs of 3 and 6 of the S5-GR3P8K. Per-unit pricing is shown in the table below.

High Efficiency 98.5 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
