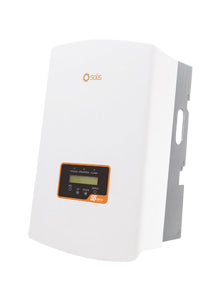

Solis 6kW S5 3 Phase Dual MPPT - DC
Solis43 In Stock

Solis 6kW S5 3 Phase Dual MPPT - DC

SOL-S5-GR3P-6K-DC
£603.22 ex. VAT
Pack size: Single
  • Secure Checkout
  • Next Working Day(Usually)
  • Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis 6kW S5 3 Phase Dual MPPT - DC

  • Rating: 6,000W
  • Phases: 3

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.3%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 2
  • Maximum AC output power of 6.6kW
  • Max PV DC Power of 9kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

Register on SolisCloud, to support remote upgrade and control.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.

6 kW, balanced across phases

9 kWRecommended PV
6.6 kVAMax AC
8.7 ARated, each phase
IP66Enclosure

A three-phase string inverter for homes and small premises. It takes up to 9 kW of panels on two trackers and stays under the G98 limit.

Sizing the array

Solis recommends up to 9 kW of PV, 1.5 times the rating. Each MPPT handles one string at 16 A, 20 A short-circuit, inside 160–1,000 V. The input is limited to 1,100 V and generation starts at 180 V. Eighteen 500 W panels as two strings of nine reach 9 kW.

Fitted, and to add

  • Integrated DC isolator
  • DC and AC Type II surge protection
  • DC arc-fault protection (AFCI), activated when commissioned
  • Meter or export power manager for export control
  • Monitoring logger (RS485 fitted; Wi-Fi or GPRS optional)

DNO route

G98 fit and inform

8.7 A rated on each phase is within the 16 A per-phase G98 allowance. The certificates, G98 included, are in the Documents tab.

Pairs with

Part numbers
SingleSOL-S5-GR3P-6K-DC
Pack of 3SOL-S5-GR3P-6K-DC-3
Pack of 6SOL-S5-GR3P-6K-DC-6

Buying more than one

Pack Units Price Per unit Saving
Single 1 £603.22 £603.22 —
Pack of 3 3 £1,736.38 £578.79 4.0%
Pack of 6 6 £3,437.06 £572.84 5.0%

Prices exclude VAT. Per-unit figures are worked out from the pack price.

Asked often

How much current per phase?

8.7 A rated at 400 V, 9.5 A maximum.

Does the meter need a logger?

Yes. The supplier notes say the three-phase meter needs a data logging stick to work.

What efficiency does it reach?

98.3% maximum, 97.7% European weighted.

Is the pack of 3 the same model?

Yes, three S5-GR3P6K units. A pack of 6 is available too; the table below gives the price per inverter.
