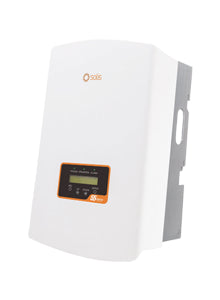

Solis 10kW S5 3 Phase Dual MPPT - DC
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
Solis 10kW S5 3 Phase Dual MPPT - DC
- Rating: 10,000W
- Phases: 3
- Max. efficiency of 98.5%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 11kW
- Max PV DC Power of 15kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.Solis S5 10kW Three-Phase Inverter, model S5-GR3P10K
The largest G98 model in the range
10 kW is as big as the S5 GR3P goes while staying under G98. The next size up, 12 kW, needs a G99 application and moves to different hardware.
Why 10 kW is the cut-off
This model's rated grid current is 14.4 A per phase at 400 V and its maximum output current is 15.9 A, both inside that limit. It can be installed and notified afterwards. Other generation on the same supply counts towards the limit too. All three certificate types, G98, G99 and G100, are filed under Documents.
Strings and trackers
There are two MPPTs, one string each, at 16 A with a 20 A short-circuit limit. They work from 160 V to 1,000 V, generation starts at 180 V and the input limit is 1,100 V. To reach the 15 kW recommendation, thirty 500 W panels as two strings of fifteen would need their cold-weather voltage checked against 1,100 V. Two strings of fourteen (14 kW) leave more margin.
What is and is not included
- DC switch built in
- Type II surge protection, DC and AC
- AFCI, activated during commissioning
- The three-phase meter for export control
- A data logger: the meter needs one to report
Add to the basket
-
Three-phase meter with 150 A CTs
Named in the supplier notes for export control of one S5 three-phase inverter. Its listing includes the 5–60 kW Series 5 range.
-
S1 Wi-Fi + 4G stick with SIM
A 4-pin logger for S5 and earlier inverters, supplied with a 5-year SIM for sites without broadband.
-
GR3P extension to 20 years
For Series 5 GR3PK models from 3 to 20 kW. Order within 12 months of installation.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £637.05 | £637.05 | — |
| Pack of 3 | 3 | £1,834.10 | £611.37 | 4.0% |
| Pack of 6 | 6 | £3,629.67 | £604.95 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
About the 10 kW
No. It is the largest GR3P cooled by natural convection. From 12 kW the range uses fans.
98.5% at best, 97.9% European efficiency.
17.8 kg in a 310 × 563 × 219 mm case.
Quantity only. The pack of 3 and pack of 6 both contain the S5-GR3P10K. The table below shows the price per unit.
Electrical
| Rated Power (Pmax) | 10 kW |
|---|---|
| Module Efficiency | 98.5 % |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 160 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 15 kW |
| Max AC Power (5 min) | 11 kVA |
| Surge AC Power (1 sec) | 11,000 W |
| Max DC Current | 16 A / 16 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 563 mm |
|---|---|
| Width | 310 mm |
| Depth | 219 mm |
| Weight | 17.8 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
