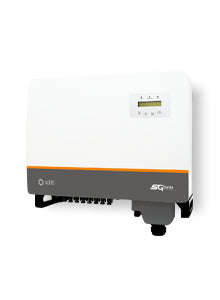

Solis 40kW S5 3 Phase Quad MPPT - DC
- Rating: 40,000W
- Phases: 3
- Max. efficiency of 98.7%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 44kW
- 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty, extendable to 10 or 20-years.
S5-GC40K - Series 5 Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
UK: G99 Certified.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.40 kW essentials
The most powerful inverter in the 37 kg S5-GC 25–40 kW case. It can run 60 kW of panels, so it suits larger commercial roofs where one inverter should do the work.
Filling 60 kW of PV
Four MPPTs each take two strings, 32 A combined per tracker and 50 A short-circuit. The window is 200–1,000 V, with start-up at 180 V and 1,100 V as the absolute limit. Solis quotes a DC/AC ratio over 150% for the range. One route to 60 kW is 120 panels of 500 W as eight strings of fifteen, after a cold-weather voltage check.
Features and exclusions
- DC switch built in
- Surge protection, Type II on DC and AC
- Smart I-V curve scan and string monitoring
- AFCI fire-risk protection, activated at commissioning
- Export control hardware (meter or EPM)
- Data logging stick
Grid connection
Rated output current is 57.7 A per phase at 400 V, with a 66.9 A maximum. Confirm the supply can carry it and submit the G99 application first. Certificates, including the G99 Form A2-3 for 40 kW, are in the Documents tab.
Add for this install
-
Solis export meter, three-phase
Meter plus three 150 A:5 A CTs. The supplier notes name it for export control of one inverter.
-
Wi-Fi and LAN logger
A 4-pin stick that can use a wired LAN connection, often steadier than Wi-Fi in a plant room.
-
Warranty extension to 20 years
Covers the 25, 30, 36 and 40 kW S5 models, this one included.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £1,119.06 | £1,119.06 | — |
| Pack of 3 | 3 | £3,221.89 | £1,073.96 | 4.0% |
| Pack of 6 | 6 | £6,377.07 | £1,062.85 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Questions on the 40 kW
Same four trackers and case, with 44 kVA of output against 39.6 kVA and 60 kW of recommended PV against 54 kW.
98.7%, the top figure for the S5-GC 25–40 kW range.
Night-time PID recovery is listed as an option on the datasheet, not standard.
Three or six S5-GC40K inverters. Only the price per unit changes, as the table below shows.
Electrical
| Rated Power (Pmax) | 40 kW |
|---|---|
| Module Efficiency | 98.7 % |
| MPPT Quantity | 4 |
| Min MPPT Voltage | 200 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 60 kW |
| Max AC Power (5 min) | 44 kVA |
| Surge AC Power (1 sec) | 44,000 W |
| Max DC Current | 4 x 32 A |
| Max DC Inputs | 8 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 629 mm |
|---|---|
| Width | 647 mm |
| Depth | 252 mm |
| Weight | 37 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
