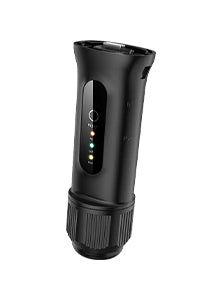

Solis Data Logging Stick - Wi-Fi & LAN USB
Solis Data Logging Stick - Wi-Fi & LAN USB
Solis Data Logging Stick - Wi-Fi & LAN USB is a data logging and communication device from Solis, connecting over LAN, Wi-Fi, with a USB connection.
A logging stick is what puts an inverter online. It reads the inverter over its communication port and forwards the data to the manufacturer's monitoring platform, which is what gives the owner an app, the installer remote diagnostics, and the warranty department the evidence it asks for when something is claimed.
Two things decide which one a job needs: the physical connector on the inverter, and what connectivity is available where the inverter is mounted. A garage with no Wi-Fi coverage needs a LAN or mobile version, not the Wi-Fi one.
Specification
| Manufacturer | Solis |
| Part number | SOL-S2-WL-ST-USB |
| Connection | USB |
| Dimensions | 112 × 34 × 49 mm |
| Weight | 89 g |
| Supported device | Solis inverters |
| Inverters per stick | Up to 10, connected hand-to-hand by RS485 |
| Data collection interval | 5 minutes |
| Wireless communication | 802.11 b/g/n, 2.4 GHz |
| Configuration | App or web |
| Status indication | 3 LED indicators |
| Operating voltage | DC 5 V ±5% |
| Power consumption | ≤ 5 W |
| Operating temperature | −30 °C to +65 °C |
| Operating humidity | 5% to 95%, non-condensing |
| Maximum altitude | 4,000 m |
| Protection degree | IP65 |
| Certification | CE, FCC |
Datasheets, installation manuals and declarations of conformity we hold for this product are in the Documents tab below. See the rest of our monitoring and metering range, or contact our sales team at sales@clearraysolar.com for compatibility advice and trade pricing.
