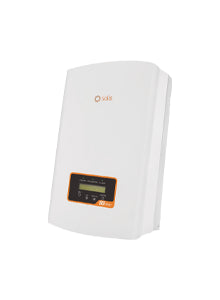

S6 3.6kW Dual MPPT - Single Phase with DC
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
S6 3.6kW Dual MPPT - Single Phase with DC
- Rating: 3,600W
- Phases: 1
- Max PV Power of 5.4kW
- Maximum string input current 14A
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Super high frequency switching technology with Max. Efficiency over 97.3% and European efficiency over 96.6%
- Wide input voltage range - Ultra low start-up voltage of 120V and max PV input voltage of 600V
- Dual MPPT design with precise MPPT algorithm
- Export Limitation built in - Requires CT clamp (sold separately)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for safe PV maintenance
- Rated IP66
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.Solis S6 3.6kW Dual MPPT Inverter, model S6-GR1P3.6K
At the G98 ceiling
It connects the most a single-phase home can under G98, and handles panels on two roof faces.
Higher-voltage input stage
From 3.6 kW the S6 moves to a wider window: 90–520 V tracking, a 330 V rated voltage and 600 V maximum. The start-up point rises to 120 V. Each of the two trackers still takes one string at 14 A. Longer strings suit it, for example two strings of six 450 W panels for 5.4 kW, the recommended maximum.
What you get
- Integrated DC switch
- Export Power Manager in the inverter
- AFCI arc-fault protection, activation required
- Something for the EPM to measure with: a CT, or the separate EPM unit on long runs
- A data logger for SolisCloud
DNO
15.7 A rated at 230 V puts it just inside the 16 A single-phase limit. Any other generation on the same supply pushes the site into G99. The G100 certificate issued for SOL-3.6-S6-DT-DC is in the Documents tab.
Useful extras
-
Solis EPM 5G, single-phase
The supplier notes point to the EPM when the supply point is more than 10 m away. It controls up to 10 Solis inverters and takes a 5 A secondary CT, bought separately.
-
RF kit and stick
Radio link from the inverter to a kit at the router. Listed as compatible with all Solis inverters.
-
Warranty extension to 10 years
Covers S6 GR1PK models from 2.5 to 6.0 kW.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £298.79 | £298.79 | — |
| Pack of 5 | 5 | £1,446.98 | £289.40 | 3.1% |
| Pack of 10 | 10 | £2,863.90 | £286.39 | 4.2% |
| Pallet of 16 | 16 | £4,534.51 | £283.41 | 5.1% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Before ordering
The 3.6 kW uses the higher-voltage stage: 120 V start and a 90–520 V window, where the 3 kW has 60 V and 50–450 V.
None. At 16 A maximum output it takes the whole single-phase G98 allowance.
Under 1 W. Its peak conversion efficiency is 97.3%.
Yes, 16 per pallet, or packs of 5 and 10. Every option is the S6-GR1P3.6K. The table shows the price per unit.
Electrical
| Rated Power (Pmax) | 3.6 kW |
|---|---|
| Module Efficiency | 97.3 % |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 90 V |
| Max MPPT Voltage | 520 V |
| Max Input Voltage | 600 V |
| Max DC Power | 5.4 kW |
| Max AC Power (5 min) | 4 kVA |
| Surge AC Power (1 sec) | 4,000 W |
| Max DC Current | 14 A / 14 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 543 mm |
|---|---|
| Width | 310 mm |
| Depth | 160 mm |
| Weight | 11.2 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
