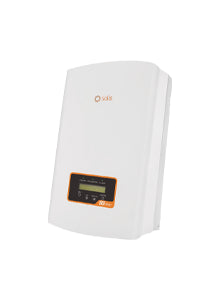

S6 3kW Dual MPPT - Single Phase with DC
- Rating: 3,000W
- Phases: 1
- Maximum string input current 14A
- Easy installation: Integrate with export power control function and DRM function.
- Max. Efficiency over 97.7% European efficiency over 97.1%
- Wide input voltage range for better generation and low startup
- Dual MPPT design with precise MPPT algorithm
- Export Limitation built in - Requires CT clamp (sold separately)
- Integrated AFCI (DC arc-fault circuit protection)
- Rated IP66
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis S6 is the latest generation of residential inverters from Solis. This range of inverters are leaders in affordable small residential and commercial rooftop installations.
Product Features
With built in DC switch.
Need monitoring? The Solis WIFI adaptor is compatible with all Solis inverters, click here for details.
Specs that matter
A 3 kW inverter for homes with panels on two roof faces. It takes 1.5 times its rating in PV, split across two independent trackers.
How the two trackers split the array
Each MPPT takes one string at up to 14 A (22 A short-circuit) and tracks between 50 V and 450 V. The whole unit starts at 60 V. A south-east face and a south-west face can differ in panel count and still each run at their own best point. Ten 450 W panels, six on one side and four on the other, reach the 4.5 kW recommendation.
What the unit already has
- DC isolating switch integrated
- Export power control, with DRM for smart-grid signals
- Integrated AFCI, needs activating on commissioning
- CT clamp for export limitation (sold separately)
- Wi-Fi or GPRS logging stick
Grid notification
Rated at 13.0 A on 230 V, this is within the 16 A single-phase G98 allowance. Its G100 certificate, issued for SOL-3.0-S6-DT-DC, is in the Documents tab.
Complete the kit
-
Single-phase export CT
100 A clamp with a 10 m lead for S6 single-phase models, required for the export limit to work.
-
GPRS logger
Uses the mobile network instead of home broadband and is listed for the entire Solis range. Needs a SIM with data.
-
Warranty to 20 years
The 15-year extension for S6 GR1PK inverters rated 2.5 to 6.0 kW.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £242.08 | £242.08 | — |
| Pack of 5 | 5 | £1,173.85 | £234.77 | 3.0% |
| Pack of 10 | 10 | £2,323.94 | £232.39 | 4.0% |
| Pallet of 16 | 16 | £3,679.58 | £229.97 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
What buyers ask
No. The two trackers are independent, so an uneven split such as six and four is fine.
550 V absolute maximum, with 450 V as the top of the tracking range.
13.0 A rated at 230 V, 15.7 A at most.
The S6-GR1P3K in fives, tens or a pallet of 16, the same model as the single. The savings table lists the per-unit prices.
Electrical
| Rated Power (Pmax) | 3 kW |
|---|---|
| Module Efficiency | 97.3 % |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 50 V |
| Max MPPT Voltage | 450 V |
| Max Input Voltage | 550 V |
| Max DC Power | 4.5 kW |
| Max AC Power (5 min) | 3.3 kVA |
| Surge AC Power (1 sec) | 3,300 W |
| Max DC Current | 14 A / 14 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 543 mm |
|---|---|
| Width | 310 mm |
| Depth | 160 mm |
| Weight | 11 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
