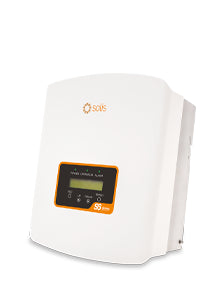

S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator
- S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator
- Part No: SOL-3.0-MINI-S6-EU-DC
- Inverters - Main Units
- Rating: 3,000W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 2.3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
SOL-3.0-MINI-S6-EU-DC Without Export Limitation Function as this inverter does not work with a CT so a meter is required for export limitiation.
Product Features
Electrical
| Rated Power (Pmax) | 3 kW |
|---|---|
| Module Efficiency | 97.3 % |
| MPPT Quantity | 1 |
| Min MPPT Voltage | 80 V |
| Max MPPT Voltage | 500 V |
| Max Input Voltage | 600 V |
| Max DC Power | 4.5 kW |
| Max AC Power (5 min) | 3.3 kVA |
| Surge AC Power (1 sec) | 1,650 W |
| Max DC Current | 19 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 373 mm |
|---|---|
| Width | 310 mm |
| Depth | 160 mm |
| Weight | 7.7 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
