Solis
45 IN STOCKReady for immediate dispatch

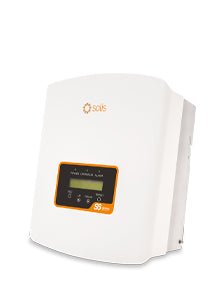

S6 Mini 3kW 1MPPT 1Ph Inverter - with DC isolator
£238.70
ex VAT
£286.44
inc VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Technical Specifications
Rated Power (Pmax)3 kW
Module Efficiency97.3 %
MPPT Quantity1
Min MPPT Voltage80 V
Max MPPT Voltage500 V
Max Input Voltage600 V
Max DC Power4.5 kW
Max AC Power (5 min)3.3 kVA
Surge AC Power (1 sec)3,300 W
Max DC Current19 A
Max DC Inputs2
Integrated DC SwitchYes
Height373 mm
Width310 mm
Depth160 mm
Weight7.7 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
Solis S6 Mini 3kW 1MPPT 1Ph Inverter - with DC isolator
- S6 Mini 3kW 1MPPT 1Ph Inverter - with DC isolator
- Part No: SOL-3.0-MINI-S6-DC
- Inverters - Main Units
- Rating: 3,000W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.1%
- Max PV Power of 4.5kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty, extendable to 10 or 20-years! (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
SA: NRS-097 certified
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.
High Efficiency 97.3 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
- Protection Devices
Documents & Certificates
Application Note Solis AC Couple - Frequency Shift Setting
Application Note Solis AC Couple Victron set up Guide
Application Note Solis Datalogger Guide
Application Note Solis Inverters - RCD - Recommendation
CE Declaration of Conformity EN61000_Certificate of conformity (2021)
Data Sheet S6-GR1P(0.6-3.6)K-M - DE
Data Sheet S6-GR1P(0.7-3.6)K-M - EN
EN50549
G100 certification SOL-3.0-MINI-S6-DC
G98 Certificate NI
G98 Certificate Solis declaration of conformity.
G99 Certificate
G99 Certificate NI
Installation Manual S6-GR1P(0.7-3.6)K-M
Installation Manual Solis Mini (700-3600) 4G S6 DE (German)
NRS-2017
User Manual S6-GR1P(0.7-3.6)K-M - DE
User Manual Solis Service Sheet
VDE 4105 AR Dyness - DL5.0C
Warranty Europa 2023 - DE (German)
Warranty Gwarancja 2022 (Polish)
Warranty Solis warranty EN
Warranty Solis_Inveter_Warranty_Global - EN
