S6 Mini 2.5kW 1MPPT 1PH Inverter - with DC isolator
- Rating: 2,500W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.1%
- Max PV Power of 3.8kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features

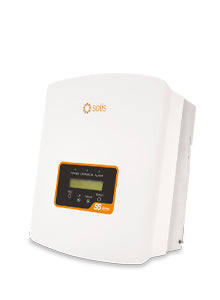

Solis S6 Mini 2.5kW Inverter, model S6-GR1P2.5K-M
What changes at 2.5 kW
This is the first Mini on the larger hardware. It has two string connections, 19 A instead of 14 A, and a 30 A short-circuit rating. The case weighs 7.7 kg.
Two strings, one tracker
Both inputs run into the same MPPT, so they are tracked as one. Two matching strings on the same roof face work well. The tracking window moves up to 80–500 V, generation starts at 90 V and the rated voltage is 330 V. For an east/west split, where each face needs its own tracker, look at the S6 2.5 kW dual tracker.
Fitted as standard
- Integrated DC isolator (the -DC in the part code)
- Export Power Manager built in
- AFCI arc-fault protection, needs activating on commissioning
- A CT, so the EPM can see the supply
- A Wi-Fi or GPRS stick for monitoring (RS485 is standard)
Grid rules
10.9 A rated output at 230 V keeps it under the 16 A (3.68 kW) G98 limit. The G100 certificate for SOL-2.5-MINI-S6-DC is in the Documents tab with the G98 and G99 certificates.
Order with this inverter
-
100 A export-limiting CT
Listed for single-phase Solis S6 inverters. It is what lets the built-in EPM hold export to a set level.
-
Solis GPRS stick
Mobile-network monitoring for any Solis inverter, so no router is needed on site. SIM not included.
-
Extend cover to 20 years
The 15-year extension for the S6 Mini series, on top of the standard 5.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £193.56 | £193.56 | — |
| Pack of 5 | 5 | £940.54 | £188.11 | 2.8% |
| Pack of 10 | 10 | £1,861.35 | £186.14 | 3.8% |
| Pallet of 24 | 24 | £4,421.76 | £184.24 | 4.8% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Installer notes
Yes. The second input is optional. One string just needs to clear the 90 V start-up and stay inside the 80–500 V window.
Solis recommends up to 3.8 kW, for example eight 475 W panels split into two strings of four.
Yes. The export manager is inside the inverter and only needs the CT.
24 units of the S6-GR1P2.5K-M. Packs of 5 and 10 are also available, and the table below lists what each works out at per unit.
Electrical
| Rated Power (Pmax) | 2.5 kW |
|---|---|
| Module Efficiency | 97.1 % |
| MPPT Quantity | 1 |
| Min MPPT Voltage | 80 V |
| Max MPPT Voltage | 500 V |
| Max Input Voltage | 600 V |
| Max DC Power | 3.8 kW |
| Max AC Power (5 min) | 2.75 kVA |
| Surge AC Power (1 sec) | 2,750 W |
| Max DC Current | 19 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 373 mm |
|---|---|
| Width | 310 mm |
| Depth | 160 mm |
| Weight | 7.7 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, extendable to 10, 15 or 20 years |
|---|
