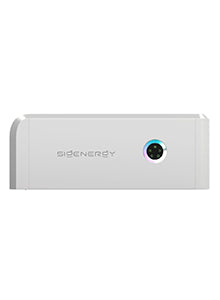

Sigenergy Sigenstor Energy Controller 3.6 kW Single Phase
- Sigenergy Sigenstor Energy Controller 3.6 kW Single Phase
- Part No: SIG-STOR-EC-3.6-SP
- Storage Systems - Hybrid Inverter
- 3.0 - 6.0 kW Single Phase
- EMS inside for precise control
- DC ground-fault protection
- Multi-source black start
- On & off-grid compatibility
- DC/AC ratio up to 2
- IP66 system protection rating
Sigenergy is leading a new way of producing, storing, transferring, and consuming home energy. They provide a genuine all-in-one solar energy storage system, SigenStor. Its unique 5-in-One modular design integrates Solar Inverter, EV DC Charger, Battery PCS, Battery Pack, and EMS into one intelligent home energy system. Simple, robust and versatile, it will be a great addition to your home.
Electrical
| Rated Power (Pmax) | 3,680 W |
|---|---|
| Module Efficiency | 98.0 % |
| Battery Voltage | 300 - 600 V |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 50 V |
| Max MPPT Voltage | 550 V |
| Max Input Voltage | 600 V |
| Max DC Power | 7,360 W |
| Max AC Power (5 min) | 3,680 VA |
| Max DC Current | 16 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 300 mm |
|---|---|
| Width | 700 mm |
| Depth | 245 mm |
| Weight | 18 kg |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
- Brochure Sigenergy Home Energy Solution
- Data Sheet Sigenergy Sigenstor Battery 5 and 8 EN
- Data Sheet Sigenergy Sigenstor CommMod EN
- Data Sheet Sigenergy Sigenstor Energy Controller EN
- Data Sheet Sigenergy Sigenstor Energy Gateway HomeMax EN
- Data Sheet Sigenergy Sigenstor EV AC Charger EN
- Data Sheet Sigenergy Sigenstor EV DV Charging Module EN
- Data Sheet Sigenergy Single Phase Power Sensor EN
- G98 Certificate Sigenergy Sigenstor EC SP
- G99 Certificate Sigenergy Sigenstor EC SP
- Installation Manual Sigenergy App EN
- Installation Manual Sigenergy Sigenstor 3.0-6.0kW Controller EN
- User Manual Sigenergy Sigenstor SP System EN
- Warranty Sigenergy Inverter System EN
- Warranty Sigenergy Sigenstor EN
