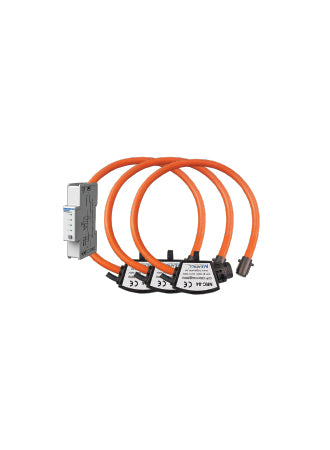

Sigenergy Power Sensor Three Phase External 1000A with Rogowski coils
- Sigenergy Power Sensor Three Phase External 1000A with Rogowski coils
- Part No: SIG-SENSOR-TP-RC1000
- Storage Systems - Storage Energy Meter
Introducing our new Rogowski Coil Meter, designed for a wider range of commercial and industrial applications. It is particularly suited for challenging scenarios such as high-current busbars and irregularly shaped conductors.
Number of coil - 3 pcs
Cable length of coil 6m
Specification
• Split-core installation for compact retrofitting on irregular busbars
• High overcurrent resilience with negligible signal distortion
• Ultra-wide frequency response spanning 30Hz to 5kHz
• Scalable 300/1000/3000A ranges for 0.2MVA–2MVA scenarios
• Industrial-grade Class B precision for energy measurement
• Fast 50ms data refresh for robust anti-backflow control
Mechanical
| Height | 0.1 m |
|---|---|
| IP Rating | IP20 |
Operating conditions
| Operating Temperature | -25 °C to +65 °C |
|---|
