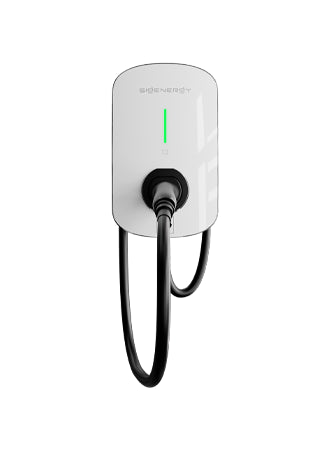

Sigenergy EV AC Charger 22 kW 4G 5m Cable Type2 White
Sigenergy EV AC Charger 22 kW 4G 5m Cable Type2 White
The Sigenergy Sigen EVAC is a 22 kW electric vehicle charge point, supplied with type 2 tethered, 5 m cable.
Specification
| Rated power | 22 kW |
| Supply | 3P/N/PE, 220 to 240 / 380 to 415 V |
| Phases | Three phase |
| Charging current | 6 to 32 A |
| Connector | Type 2 tethered, 5 m cable |
| Colour | White |
| Weight | 6.4 kg |
| Vehicle connection | Type 2 connector, or Type 2 socket with shutter |
| AC input cable range | 2.5 to 6.0 mm² |
| Integrated DC fault detection | 6 mA |
| Integrated AC fault detection | 30 mA |
| PEN protection | Supported |
| Protection | Over/under voltage, overload, over temperature, ground fault, surge |
| Grounding system | TT, TN, IT |
| Flame retardant rating | UL94-5VB |
| Communication | 4G / WLAN / Fast Ethernet, RS485 Modbus RTU |
| Authentication | RFID card, app, or auto-charge |
| OCPP | OCPP 1.6J |
| Smart charging | PV surplus charging, scheduled charging, fast charging, battery boost |
| Dynamic load management | Supported |
| Phase switching | Supported |
| Dimensions (W × H × D) | 234 × 384 × 126 mm |
| Operating temperature | −30 °C to +55 °C |
| Maximum altitude | 4,000 m |
| Cooling | Natural convection |
| Warranty | 3 years |
Installing an EV charge point in the UK
A home charge point is a fixed electrical installation and must be installed by a competent person to BS 7671. Two questions decide most of the job. First, does the unit have integrated PEN fault protection? On a TN-C-S (PME) supply that is what removes the need for an earth rod and the groundworks that come with it. Second, can the existing supply carry another 32 A? That is what load balancing exists to manage — the charger backs off when the house is drawing heavily, instead of taking out the main fuse.
Every charge point sold in Great Britain must also meet the Electric Vehicles (Smart Charge Points) Regulations 2021, which require default off-peak charging hours, a randomised start delay, and measures against unauthorised access.
Additional suggested items
Usually ordered at the same time:
- Sigenergy RFID Card — RFID card for starting a charge without the app
- 6mm2 Five Core Cat5e EV Ultra Cable with SWA Sleeve - 10m — power and Cat5e data in one armoured cable, for the run out to the charger
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
