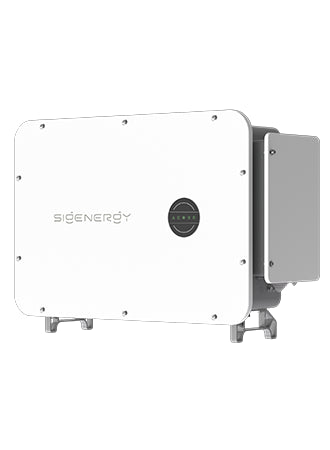

Sigenergy M1 80kW PV Inverter
Sigenergy 80M1 – 80kW C&I PV Inverter
3-Phase Commercial & Industrial · SKU: SIG-80M1
The world's smallest and lightest C&I inverter in its power range, the 80M1 integrates EMS across hundreds of parallel units with no data logger required, cutting transportation, installation, and O&M costs.
Power Rating
80,000 W
80kW outputPhases
3-Phase
C&I applicationsParallel Operation
Hundreds of Units
No data logger requiredProtection Rating
IP66
Outdoor ratedSafety Detection
Industry-Leading AFCI
Plus PV reverse connection alertForm Factor
Lightweight
Smallest & lightest in classSimplified Scaling
Integrated EMS lets any inverter act as host across a large parallel fleet, removing the need for a separate data logger.
Lower Install Costs
Lightweight, compact design reduces transportation and installation costs versus comparable C&I inverters.
Built-In Safety
Industry-leading AFCI detection and instant PV reverse connection alerts catch faults before they become failures.
Electrical
| Rated Power (Pmax) | 80,000 W |
|---|---|
| Module Efficiency | 98.6 % |
| MPPT Quantity | 6 |
| Min MPPT Voltage | 160 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 160,000 Wp |
| Max AC Power (5 min) | 88,000 VA |
| Max DC Current | 32 A |
Mechanical
| Height | 640 mm |
|---|---|
| Width | 918 mm |
| Depth | 340 mm |
| Weight | 75 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
