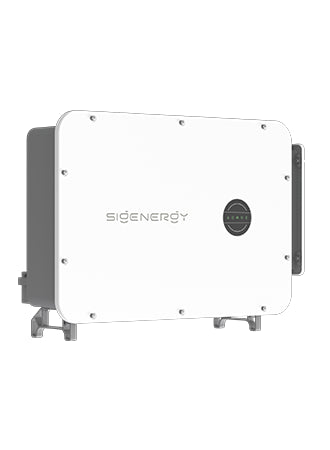

Sigenergy M1 60kW PV Inverter
- Sigenergy M1 60kW PV Inverter
- Part No: SIG-60M1
- Inverters - Main Units
- Rating: 60,000W
- Phases: 3
- Lightweight design, saves transportation and installation costs
- Multiple units in parallel connection, no data logger needed
- Industry-leading AFCI detection, superior safety and reliability
- Instant PV reverse connection alert, ensuring correct installation
- IP66 protection rating, worry-free outdoor usage with easy O&M
60M1
Sigenergy’s latest C&I solution is designed for optimal safety, flexibility, efficiency, and intelligence. Being the world's smallest and lightest C&I inverter in its power range, Sigen C&I Inverter drives customer value by enabling easier transportation and installation.
Integrated EMS, hundreds of inverters can be connected in parallel without any data logger required. Any inverter can serve as the host to manage the entire system, saving upfront investment costs and subsequent O&M trouble.
Electrical
| Rated Power (Pmax) | 60,000 W |
|---|---|
| Module Efficiency | 98.6 % |
| MPPT Quantity | 5 |
| Min MPPT Voltage | 160 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 120,000 Wp |
| Max AC Power (5 min) | 66,000 VA |
| Max DC Current | 32 A |
Mechanical
| Height | 640 mm |
|---|---|
| Width | 918 mm |
| Depth | 340 mm |
| Weight | 75 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
- Data Sheet Sigenergy PV Inverter M1 50-125kW EN
- Data Sheet Sigenergy Sigenstor CommMod EN
- G100 certification Sigenergy C&I UK
- G99 Certificate Sigenergy C&I GB
- G99 Certificate Sigenergy C&I NI
- Installation Manual Sigen PV 50 â 125 M1 Sigen PV 36 - 110 M1-HYA Series
- Installation Manual Sigenergy App EN
- Technical Data Sigenergy C&I Products and Solutions Overview EN
