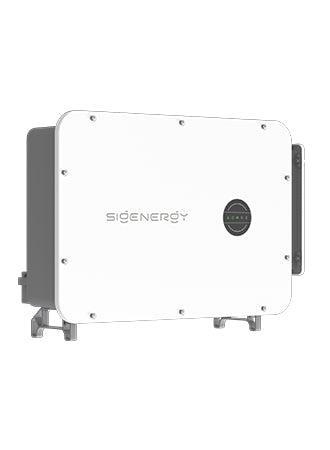

Sigenergy M1 50kW Hybrid Inverter HYA
Sigenergy 8 IN STOCKReady for immediate dispatch

Sigenergy M1 50kW Hybrid Inverter HYA

SIG-50M1-HYA
£2,956.17 ex VAT £3,547.40 inc VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Technical Specifications
Rated Power (Pmax)50,000 W
Module Efficiency98.6 %
MPPT Quantity4
Min MPPT Voltage160 V
Max MPPT Voltage1,000 V
Max DC Power100,000 Wp
Max AC Power (5 min)55,000 VA
Max DC Current40 A
Max DC Inputs8
Height640 mm
Width918 mm
Depth340 mm
Weight72 kg
Operating Temperature-30 °C to +60 °C
View Full Datasheet

Sigenergy M1 50kW Hybrid Inverter HYA

Sigenergy · Sigen Hybrid Inverter M1 HYA

Sigenergy M1 50kW Hybrid Inverter HYA

Sigenergy Sigen Hybrid Inverter M1 HYA — Battery-ready C&I: 100 units in parallel with no data logger, and 253 kWh of SigenStack behind one inverter.

A hybrid inverter does three jobs a string inverter cannot. It converts solar DC to AC; it charges and discharges a battery on the DC side, which avoids the double conversion an AC-coupled battery pays for; and when the grid fails it islands the house and keeps the backup output alive from the battery.

Rated AC output
50,000 WThree phase on-grid output
Maximum PV input
100,000 WpArray size this inverter accepts
MPP trackers
4Independent roof planes
Peak efficiency
98.6 %Conversion efficiency at best
Overview

About the Sigenergy Sigen Hybrid Inverter M1 HYA

The M1 HYA is Sigenergy's commercial and industrial machine, and its defining choice is that it ships battery ready rather than battery fitted. The port is there from day one, so a site can put the PV in now and add up to 21 SigenStack modules — 253 kWh — when the business case for storage arrives, without changing the inverter.

The EMS is built in and up to 100 units run in parallel with no data logger at all: any inverter in the array can act as host. On a large site that removes a control layer, its cabling and its failure modes.

It is the smallest and lightest inverter in its power class, which matters when it has to be carried up scaffolding: 72 kg at 50 kW. AFCI covers up to 600 m of string, and the rating is IP66.

Battery compatibility

Which battery does this inverter take?

This inverter takes SigenStack BAT 12.0.

This rule applies to the Sigen Hybrid Inverter M1 HYA, 50 to 125 kW.

4 to 21 modules. Maximum operating current 180 A.

What we stock that fits this inverter:

Sigenergy SigenStack Battery 12.0 kWhThe module this platform stacks.
Sigenergy SigenStack MAIN Base Unit 0.5CRequired base for the stack.
Sigenergy SigenStack Battery Controller M2-0.5CThe stack controller.
SigenStack is a closed system: the BAT 12.0 modules, the base unit and the battery controller are matched to each other and to the inverter, and no third-party battery can be connected. A stack needs the MAIN base unit and a battery controller as well as the modules themselves.
For the installer

String design, battery limits and what is in the box

The details that decide whether this unit suits the job:

  • Battery is SigenStack BAT 12.0, 4 to 21 modules, with a maximum operating current of 180 A. The inverter is battery ready but the battery is a separate order.
  • MPP trackers by model: 4 on the 50 kW, 5 on the 60 kW, 6 on the 80 kW and 8 on the 100, 110 and 125 kW, two strings each at 40 A and 60 A short circuit.
  • 1,100 V maximum DC, 600 V nominal, 180 V start-up, 160 – 1,000 V MPPT window.
  • PV input is twice the AC rating on most models: 100 kWp on the 50 kW, 220 kWp on the 110 and 125 kW.
  • Maximum charge and discharge power equals the maximum apparent output — 55 kW on the 50 kW unit, 137.5 kW on the 125 kW.
  • Up to 100 units in parallel with no data logger; any inverter can be the host.
  • PV connection is MC4 or H4 Pro to 6 mm²; AC is an OT or DT terminal to 240 mm².
  • 50 to 110 kW are 918 × 640 × 340 mm and 72 to 78 kg; the 125 kW is 999 × 668 × 340 mm and 95 kg.
  • Altitude to 5,000 m with derating from 4,000 m. Type II DC surge protection is fitted, Type I + II is optional.
Applications

Where this hybrid earns its place

The Sigen Hybrid Inverter M1 HYA is specified most often for these jobs.

Commercial PV now, storage laterBattery-ready port, up to 253 kWh of SigenStack.
Large parallel arrays100 units in parallel with no data logger.
Sites with difficult access72 kg at 50 kW.
Fire-conscious specificationsAFCI over 600 m of string.
Outdoor and industrial sitesIP66, to 5,000 m.
Peak shaving and demand managementBuilt-in EMS.
Technical specification

Sigenergy 50M1-HYA technical data

This model
Maximum PV array power100,000 Wp
Maximum PV input power100,000 Wp
Number of MPP trackers4
Strings per MPP tracker2
Maximum battery discharge power55,000 W
Output, backup and performance
Rated AC output power50,000 W
Maximum apparent AC power55,000 VA
Rated AC output current72.5 A
Maximum AC output current83.6 A
European efficiency98.3 %
Weight72 kg
Common to the range
Maximum DC input voltage1,100 V
Nominal DC input voltage600 V
Start-up voltage180 V
MPPT voltage range160 – 1,000 V
Number of PV strings per MPPT2
Maximum input current per MPPT40 A
Maximum short circuit current per MPPT60 A
Battery module modelsSigenStack BAT 12.0
Number of battery modules4 to 21
Maximum battery operating current180 A
Nominal output voltage380 / 400 V, 3W+(N)+PE
Nominal grid frequency50 / 60 Hz
Power factor0.8 leading to 0.8 lagging
Maximum efficiency98.6 %
Safety protection featuresDC reverse polarity protection, insulation monitoring, residual current monitoring, arc fault circuit interrupter, AC overcurrent, overvoltage and short circuit protection, Type II DC surge protection (Type I + II optional), Type II AC surge protection, anti-islanding protection
Storage temperature range−40 °C to +70 °C
Operating temperature range−30 °C to +60 °C
Relative humidity range0 – 100 %
Maximum operating altitude5,000 m, derating from 4,000 m
PV connection typeMC4 / H4 Pro, maximum 6 mm²
AC connection typeOT / DT terminal, maximum 240 mm²
CoolingSmart air cooling
Ingress protection ratingIP66
CommunicationWLAN / fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
Parallel operationUp to 100 units, no data logger required
Compliance and warranty
Grid connection standardsSee the certificates attached to this listing; ask us for the current G99 certificate for your model and firmware
Safety and EMCIEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2
WarrantySee the warranty document attached to this listing
Specification sourceSigen Hybrid Inverter 50.0 / 60.0 / 80.0 / 100.0 / 110.0 / 125.0 kW datasheet, version 20260709
Goes with this

Ordered with this inverter more often than anything else

A hybrid is the middle of a system, not the whole of it. These are the parts our customers add most often:

Sigenergy Power Sensor Three Phase External 600A CT DHThree-phase power sensor with a 600 A external CT for commercial sites.
Sigenergy 4G Communication ModuleSigen CommMod 4G module, where there is no broadband at the inverter.
Sigenergy SigenStack CoverSigenStack cover, to finish the stack.
Frequently asked questions

Questions we get asked about this inverter

Does it come with a battery?

No. It is battery ready: the port is fitted and the EMS is built in, and you add SigenStack BAT 12.0 modules — 4 to 21 of them, up to about 253 kWh — when you want them.

Do I need a data logger to parallel them?

No, and that is one of the reasons to choose the platform. Up to 100 units run in parallel with the EMS built in, and any inverter can act as the host for the whole system.

How much PV can it take?

Twice the AC rating on most models: 100 kWp on the 50 kW and 220 kWp on the 110 and 125 kW, across 4 to 8 MPP trackers at 40 A each.

What is the AFCI range?

Sigenergy quote arc-fault detection over 600 m of string, which is unusually long and is aimed at commercial layouts where the string runs are long.

ClearRay Solar

Documents, advice and trade pricing

Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our hybrid inverter range, our batteries and our solar panels, or email sales@clearraysolar.com if you would like us to check a battery pairing or a string design before you order.
