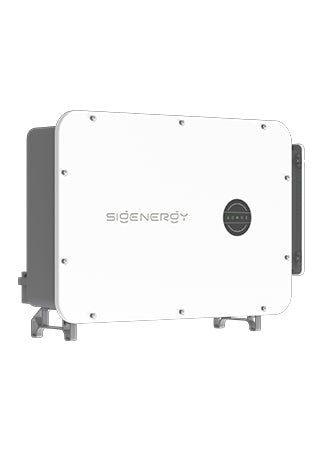

Sigenergy M1 100kW Hybrid Inverter HYA
- Sigenergy M1 100kW Hybrid Inverter HYA
- Part No: SIG-100M1-HYA
- Storage Systems - Hybrid Inverter
- Lightweight design, saves transportation and installation costs
- Battery ready, supports up to 21 SigenStack modules for 253.26kWh of storage
- Multiple units in parallel connection, no data logger needed
- Industry-leading AFCI detection, superior safety and reliability
- Phase Sequence Self-Adaptation - no more complex wiring
- Instant PV reverse connection alert, ensuring correct installation
- IP66 protection rating, worry-free outdoor usage with easy O&M
100M1-HYA
Sigenergy’s latest C&I solution is designed for optimal safety, flexibility, efficiency, and intelligence. Being the world's smallest and lightest C&I inverter in its power range, Sigen C&I Inverter drives customer value by enabling easier transportation and installation. It also features a reserved battery port for future connection to the fully modular BESS — SigenStack.
Integrated EMS, hundreds of inverters can be connected in parallel without any data logger required. Any inverter can serve as the host to manage the entire system, saving upfront investment costs and subsequent O&M trouble.
Electrical
| Rated Power (Pmax) | 100,000 W |
|---|---|
| Module Efficiency | 98.6 % |
| MPPT Quantity | 8 |
| Min MPPT Voltage | 160 V |
| Max MPPT Voltage | 1,000 V |
| Max DC Power | 200,000 Wp |
| Max AC Power (5 min) | 110,000 VA |
| Max DC Current | 40 A |
| Max DC Inputs | 16 |
Mechanical
| Height | 640 mm |
|---|---|
| Width | 918 mm |
| Depth | 340 mm |
| Weight | 78 kg |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
- Data Sheet Sigenergy HYA Hybrid Inverter M1 50-125kW EN
- Data Sheet Sigenergy Sigenstor CommMod EN
- G100 certification Sigenergy C&I UK
- G99 Certificate Sigenergy C&I GB
- G99 Certificate Sigenergy C&I NI
- Installation Manual Sigen PV 50 â 125 M1 Sigen PV 36 - 110 M1-HYA Series
- Installation Manual Sigenergy App EN
- Technical Data Sigenergy C&I Products and Solutions Overview EN
