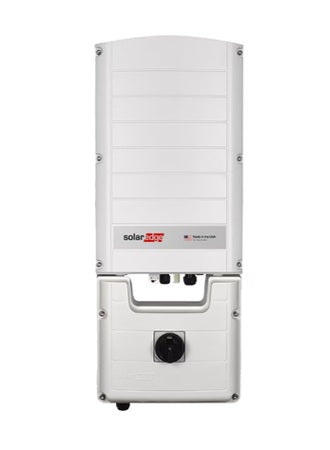

SE-SIN-RWR0IBNH8 - 3PH With DC Safety Unit, Rapid Shutdown, AC/DC surge protection (Type II), MC4
- SE-SIN-RWR0IBNH8 - 3PH With DC Safety Unit, Rapid Shutdown, AC/DC surge protection (Type II), MC4
- Part No: SE-SIN-RWR0IBNH8
- PV Inverters - Main Units
- Rating: 33,300W
The SolarEdge MultiRange concept uses a single inverter part number to cover multiple power classes, allowing installers to set and lock the specific power rating on-site during commissioning.
MultiRange
Fewer Part Numbers: Consolidates inventory by reducing the variety of hardware models you need to stock for different power ratings.
On-Site Configuration: Installers select the desired power class using the SolarEdge Go app during the setup process.
Locked Ratings: Once confirmed during commissioning, the power selection is permanently locked and can only be modified by SolarEdge support.
Label Updates: A matching power rating sticker is applied to the unit if the default label does not reflect the newly commissioned power class
Electrical
| Rated Power (Pmax) | 20,001 W |
|---|---|
| Min MPPT Voltage | 680 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1000 V |
| Max DC Power | 35,000 W |
| Max AC Power (5 min) | 20,001 VA |
| Max DC Current | 29 Adc |
Mechanical
| Height | 317 mm |
|---|---|
| Width | 550 mm |
| Depth | 273 mm |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -40 °C to +60 °C |
|---|
Warranty
| Warranty | 12 years standard, extendable to 20 years |
|---|
