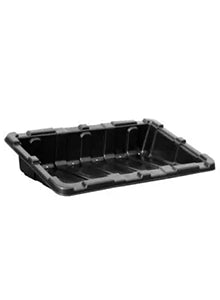

ConSole+ (incl. Mounting material and U-Profile)/80

The ConSol + provides an angle of 15 degrees

The ConSol assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees with out roof penetration. Most commercially available framed standard PV modules fir on the ConSol.

The ConSol is weighed down with ballast (gravel, paving slabs, etc) in order to resist the windloads. The necessary weight of the ballast depend on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.

Applicational Data Material Dimensions Weight Compatible Components Suitable for flat-roof- and ground mounting installations; For framed PV-modules; Module length: 1550 - 1730 mm; Hole spacing on the short side of the module: 895 - 1014 mm;Hole spacing on the long side of the module: 690 - 1180 mm HDPE, Aluminium and Stainless steel 1730 x 1055 x 390 mm 8,406 kg 400005, 420022, 520076, 920106 1 x ConSole+ 2 x ConSole U-Profile 1035 mm 4 x Hexag. screw DIN933-M6x20 A2-70 4 x Washer DIN9021-6,4-A2 4 x Self-locking hexag. nut DIN985-M6-A2 4 x ConSole Clip 4 x Hexag. screw DIN7504-ST5,5x25-A2-SW8
