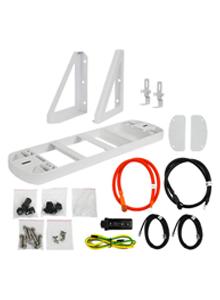

Wall-Mounted Installation Package With Cable for Pelio-L-5.12
Pylontech Wall-Mounted Installation Package With Cable for Pelio-L-5.12
Wall-Mounted Installation Package With Cable for Pelio-L-5.12
Pylontech Pelio-L installation kits — Everything the Pelio-L needs to go up — except the parallel comms cable.
The Pelio-L-5.12 is Pylontech's low-voltage module, and these kits are how it gets installed — not an optional extra but the brackets, base, cables and fixings the job needs.
About the Pylontech Pelio-L installation kits
The two kits differ in more than the bracket. The wall kit brings left and right brackets, a base and 1.2 m 4AWG power cables; the ground kit brings a base and longer 2.5 m power cables, because a floor-standing battery sits further from the inverter.
Both include the 2.5 m RS485 and CAN communication cables, two communication ports, a grounding cable, two anti-tipping brackets, the outlet brackets, waterproof covers, handle baffles, the fixings and a Wi-Fi block.
One thing is in neither kit: the parallel connection communication cable. If more than one battery is going in, that is a separate conversation before the order goes out.
What does this fit?
This is the brackets, base and cables a Pelio-L-5.12 module is installed with.
One kit per installation, chosen by whether the battery is going on a wall or on the floor. Both kits include the power, RS485 and CAN cables, the grounding cable, anti-tipping brackets and a Wi-Fi block. Neither includes the parallel connection communication cable.
The products it is ordered with:
What the job needs
The details that decide whether this suits the system:
- One kit per battery, chosen by wall or ground mounting.
- Wall kit: left and right brackets, base, 1.2 m 4AWG positive and negative power cables, 2.5 m RS485 and CAN cables, 2 communication ports, grounding cable, 2 anti-tipping brackets, 2 outlet brackets, 4 waterproof covers, 2 handle baffles, a Wi-Fi block and the fixings: 2 × M5x12, 4 × M4x6, 4 × M6x16, 8 × M8x60 expansion screws and 10 nylon countersunk M5x10.
- Ground kit: base, 2.5 m 4AWG positive and negative power cables, 2.5 m RS485 and CAN cables, 2 communication ports, grounding cable, 2 anti-tipping brackets, 2 outlet brackets, 4 waterproof covers, 2 handle baffles, a Wi-Fi block and the fixings: 2 × M5x12, 4 × M4x6, 4 × M8x60 expansion screws and 5 nylon countersunk M5x10.
- The power cable length is the practical difference: 1.2 m on the wall kit against 2.5 m on the ground kit.
- Parallel connection communication cable is not included. Call or email us if the installation needs one.
Where this earns its place
The kit is chosen by where the battery is going.
Things worth knowing about this listing
- Attention: the parallel connection communication cable is not included. Call or email us if the installation needs one.
Pylontech Wall mounting kit technical data
Questions we get asked about this inverter
Which kit do I need?
The wall kit if the battery is going on a wall, the ground kit if it is standing on the floor. The power cables differ in length as well as the brackets.
How long are the power cables?
1.2 m 4AWG on the wall kit and 2.5 m 4AWG on the ground kit.
Is the parallel communication cable included?
No. It is in neither kit. Call or email us if the installation needs one.
Is the Wi-Fi block included?
Yes, in both kits.
Are anti-tipping brackets included?
Yes — two in each kit.
