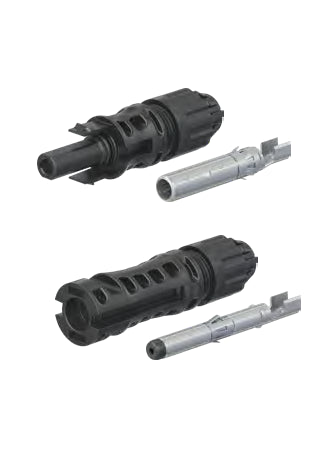

MC4-Evo2 1500V DC Connector Double Pack 0086/0087 (Kit 2)
Staubli MC4-Evo2 1500V DC Connector Double Pack 0086/0087 (Kit 2)
- MC4-Evo2 1500V DC Connector Double Pack 0086/0087 (Kit 2)
- Part No: MC4-EVO2-CONN16-2-PACK
- Cables - Connectors
| 2 x MC4-EVO2A-0316-FEM | MC4-Evo2A 1500V DC Female Connector 0316 Small - Single | |
| 2 x MC4-EVO2A-0317-MAL | MC4-Evo2A 1500V DC Male Connector 0317 Small - Single | |
The MC4-Evo2 is the latest addition to the Stäubli Electrical Connectors PV connector portfolio.
Internationally certified with IEC, UL, JET, cTÜVus. 1xMale, 1xFemale.
Approved for 1500 V DC (IEC)
Rated current: 45A 4mm2 and 53A 6mm2 cables
MULTILAM Technology, has proven the quality and durability several 100 million times since 2004
Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high IP class (IP68)
Supplier code: 32.0086P0001-UR and 32.0087P0001-UR - for use with 4mm2 & 6mm2 with an outside diameter of 4.7mm-6.4mm
(including insulating part)
PLEASE NOTE THIS IS A NEW MC4-EVO2 CONNECTOR AND IT WILL REQUIRE SPECIAL MC4-EVO2 CRIMPING TOOL, AVAILABLE HERE. THE STANDARD MC4 TOOLS SHOULD NOT BE USED WITH THIS TYPE OF CONNECTOR.
