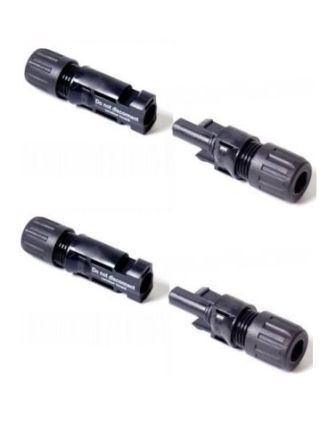

MC4 Connector Twin Pack ( Kit 1 ) 0014/0015

A pack of 2x Male and 2x Female cable couplers

(including insulating part)

• Snap-in lock
• Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool
• Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
• Tried and tested plug connectors, 14 years of experience in the field
• Suitable for assembly with cross-sections of 4 and 6 mm²

Rated current: 39 A (for 4 and 6mm2 cable)

Rated voltage: 1000 V IP Rating: IP65 / IP68 when mated (1h / 1min) Cross section: 4 - 6 mm² Outer diameter cable (dA): 5,0 - 6.0mm

Connectors 32.0014P0001-UR and 32.0015P0001-UR are used in this kit.

Please use correct MC4 approved tools to crimp these connectors on to bare cables.
