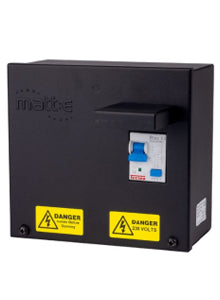

Single Phase Monitoring and Protection Unit with built in RCBO (BTO)
£209.58
ex VAT
£251.50
inc VAT
Secure Checkout
14-Day Returns
Tracked Delivery
UK StockDispatched from our own warehouse
Trade PricingVolume discounts for installers
Expert SupportSystem design help on request
Technical Specifications
Product Warranty3 years
matt e Single Phase Monitoring and Protection Unit with built in RCBO (BTO)
Single Phase Monitoring and Protection Unit with built in RCBO (BTO) — matt:e SP-EVCP SP-EVCP-R.
Specification
| Terminal capacity | 10.0 mm² |
| Output | Built-in RCD |
| Description | Single phase voltage monitoring and protection unit |
| Nominal input voltage | 230 V single phase, 50 Hz |
| Maximum load | 32 A |
| Dimensions (H × W × D) | 169 × 182 × 111 mm |
| Weight | Approximately 3 kg |
| Enclosure | Mild steel, powder coated |
| Ingress protection | IP2X |
| Warranty | 3 years |
Additional suggested items
Usually ordered at the same time:
- Tesla Gen 3 Wall Connector - 7kW/22kW Type 2 Tethered — the charger this protection unit is most often fitted with
- Single Phase Monitoring and protection device with built in current limiter (BTO) — the version with load management preset at 60 A
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
