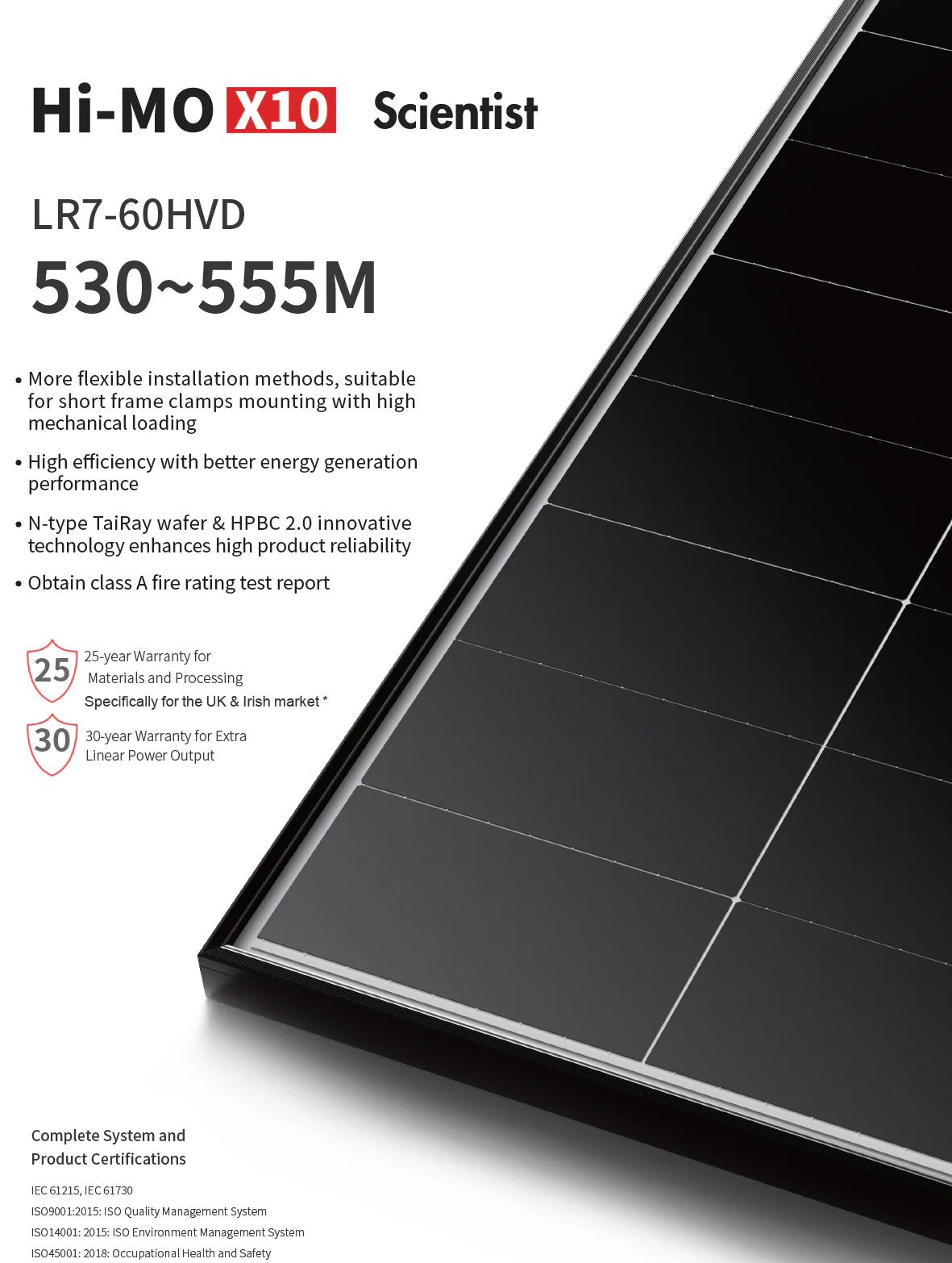

LONGi 535W Hi-MO X10 Scientist HPBC Half Cell Bifacial Black Frame Solar Panel
LONGi 535W Hi-MO X10 Scientist HPBC Half Cell Bifacial Black Frame Solar Panel
The LONGi Hi-MO X10 535 W is an HPBC 2.0 back-contact, N-type TaiRay wafer solar panel. LONGi's HPBC back-contact cells carry no front-side busbars, so the whole front surface collects light and the module presents a uniform face. It delivers 23.7 % module efficiency from a 1,990 × 1,134 mm frame.
About the LONGi Hi-MO X10 range
Hi-MO X10 is LONGi's high-end residential platform. LONGi rates the HPBC 2.0 cell for higher generation from the same area, a gridline-free low-glare face, and an anti-shading function that limits localised overheating where part of the array is shaded.
At 1,990 × 1,134 mm it is a residential-format module, sized to fit the rafter spans and roof planes of a standard UK house. Being bifacial, it earns most of its extra yield on flat roofs, ground mounts and light-coloured surfaces, where light reaches the back of the module; on a pitched tiled roof the rear-side gain is small.
Why installers specify this panel
- −0.260 %/°C power temperature coefficient — the array keeps more of its rated output on hot days, when a UK roof can sit far above the 25 °C the nameplate figure is measured at.
- Bifacial, 70 % ±5 % — the rear face adds generation from reflected and diffuse light, which suits flat roofs, ground mounts and light-coloured surfaces.
- Glass-glass construction — double glass, 2.0 mm coated tempered + 2.0 mm semi-tempered front and back instead of a polymer backsheet, for better resistance to moisture ingress and micro-cracking.
- Hail tested to 25 mm at 23 m/s — relevant for exposed and upland UK sites.
- All-black appearance — a black anodised frame and dark cells, for domestic roofs where the array has to be discreet.
- Long-dated warranty — 30-year power warranty; first-year degradation under 1 %, 0.35 % per year thereafter.
Electrical characteristics (STC)
| Rated power (Pmax) | 535 W |
| Module efficiency | 23.7 % |
| Open-circuit voltage (Voc) | 45.05 V |
| Voltage at maximum power (Vmp) | 37.27 V |
| Short-circuit current (Isc) | 15.00 A |
| Current at maximum power (Imp) | 14.36 A |
| Power tolerance | 0 to +3 % |
| Maximum system voltage | DC 1500 V (IEC) |
| Maximum series fuse rating | 30 A |
STC: AM1.5, 1,000 W/m², 25 °C cell temperature.
Mechanical specification
| Cell technology | HPBC 2.0 back-contact (N-type TaiRay wafer) |
| Number of cells | 120 (6 × 20) |
| Glass | Double glass, 2.0 mm coated tempered + 2.0 mm semi-tempered |
| Frame | Anodised aluminium alloy |
| Dimensions (H × W × D) | 1,990 × 1,134 × 30 mm |
| Weight | 28 kg |
| Junction box | IP68, three diodes |
| Cable | 4 mm², +400 / −200 mm or ±1,400 mm |
Temperature and load ratings
| Temperature coefficient of Pmax | −0.260 %/°C |
| Temperature coefficient of Voc | −0.200 %/°C |
| Temperature coefficient of Isc | +0.050 %/°C |
| Operating temperature | −40 °C to +85 °C |
| Nominal operating cell temperature | 45 ±2 °C |
| Maximum static load | 5,400 Pa front / 2,400 Pa back |
| Hailstone test | 25 mm hailstone at 23 m/s |
| Protection class | Class II |
| Fire rating | IEC Class C |
Warranty and certification
30-year power warranty; first-year degradation under 1 %, 0.35 % per year thereafter.
Array sizing
Each panel covers 2.26 m². A 4 kWp array needs 7 of them (3.75 kWp over about 16 m²). A 6 kWp array needs 11 of them (5.88 kWp over about 25 m²). At 28.0 kg each they are a two-person lift.
About LONGi
LONGi is one of the largest solar manufacturers in the world and the company behind the Hi-MO series. Its HPBC back-contact platform is the successor to the PERC modules it shipped in volume for a decade, and it is manufactured to IEC 61215 and IEC 61730 under ISO 9001, ISO 14001, ISO 45001 and IEC 62941 quality systems.
Datasheets, installation manuals and warranty documents for the LONGi Hi-MO X10 are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.
