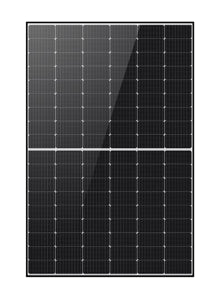

LONGi 490W Hi-MO X10 Explorer Monoglass Monofacial HPBC 54 Cell Black Frame MC4-EVO2 Solar Panel
LONGi 490W Hi-MO X10 Explorer Monoglass Monofacial HPBC 54 Cell Black Frame MC4-EVO2 Solar Panel
The LONGi Hi-MO X10 is a Back-contact (BC) cell on an N-type TaiRay wafer solar panel. It delivers 24.0 % module efficiency from a 1,800 × 1,134 mm frame.
About the LONGi Hi-MO X10 range
Hi-MO X10 is LONGi's high-end residential platform. LONGi rates the HPBC 2.0 cell for higher generation from the same area, a gridline-free low-glare face, and an anti-shading function that limits localised overheating where part of the array is shaded.
At 1,800 × 1,134 mm it is a residential-format module, sized to fit the rafter spans and roof planes of a standard UK house.
Why installers specify this panel
- Hail tested to 25 mm at 23 m/s — relevant for exposed and upland UK sites.
- All-black appearance — a black anodised frame and dark cells, for domestic roofs where the array has to be discreet.
- Long-dated warranty — 15-year warranty for materials and processing and a 30-year linear power output warranty; first-year degradation under 1 %, 0.35 % per year from year 2 to 30.
Electrical characteristics (STC)
| Rated power (Pmax) | 490 W |
| Module efficiency | 24.0 % |
| Open-circuit voltage (Voc) | 40.52 V |
| Voltage at maximum power (Vmp) | 33.51 V |
| Short-circuit current (Isc) | 15.33 A |
| Current at maximum power (Imp) | 14.63 A |
| Maximum system voltage | DC 1500 V (IEC) |
| Maximum series fuse rating | 25 A |
STC: AM1.5, 1,000 W/m², 25 °C cell temperature.
Mechanical specification
| Number of cells | 108 (6 × 18) |
| Glass | Single glass, 3.2 mm coated tempered glass |
| Frame | Anodized aluminium alloy |
| Dimensions | 1,800 × 1,134 × 30 mm |
| Weight | 21.6 kg |
| Junction box | IP68, three diodes |
Temperature and load ratings
| Operating temperature | -40 °C to +85 °C |
| Nominal operating cell temperature | 45 ±2 °C |
| Hail test | 25 mm Hailstone at the speed of 23m/s |
| Protection class | Class II |
| Fire rating | IEC Class C |
Warranty and certification
15-year warranty for materials and processing and a 30-year linear power output warranty; first-year degradation under 1 %, 0.35 % per year from year 2 to 30. Certified to IEC 61215, IEC 61730, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 and IEC 62941.
Array sizing
Each panel covers 2.04 m². A 4 kWp array needs 8 of them (3.92 kWp over about 16 m²). A 6 kWp array needs 12 of them (5.88 kWp over about 24 m²). Each module weighs 21.6 kg.
About LONGi
LONGi is one of the largest solar manufacturers in the world and the company behind the Hi-MO series. Its HPBC back-contact platform is the successor to the PERC modules it shipped in volume for a decade, and it is manufactured to IEC 61215 and IEC 61730 under ISO 9001, ISO 14001, ISO 45001 and IEC 62941 quality systems.
