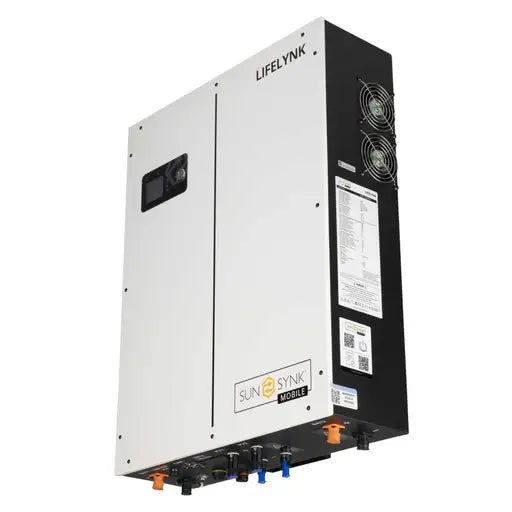

Sunsynk Lifelynk X 3.6kW Hybrid Inverter with 3.84kWh Battery
Sunsynk 14 IN STOCKReady for immediate dispatch

Sunsynk Lifelynk X 3.6kW Hybrid Inverter with 3.84kWh Battery

LIFE-3.6-HYB02
£1,374.25 ex VAT £1,649.10 inc VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Technical Specifications
Rated Power (Pmax)3,600 W
Module Efficiency97.6 %
Battery Voltage43.2 - 57.6 V
MPPT Quantity2
Min MPPT Voltage120 V
Max MPPT Voltage450 V
Max DC Power4,500 W
Max AC Power (5 min)3,600 VA
Max DC Current12 A x 2
Height700.6 mm
Width543.6 mm
Depth182.2 mm
Weight51.7 kg
View Full Datasheet

Sunsynk Lifelynk X 3.6kW Hybrid Inverter with 3.84kWh Battery

Sunsynk · Lifelynk X

Sunsynk Lifelynk X 3.6kW Hybrid Inverter with 3.84kWh Battery

Sunsynk Lifelynk X — Inverter and battery in one wall box, pre-set at the factory and wired for plug and play.

A hybrid inverter does three jobs a string inverter cannot. It converts solar DC to AC; it charges and discharges a battery on the DC side, which avoids the double conversion an AC-coupled battery pays for; and when the grid fails it islands the site and keeps the essential-load output alive from the battery.

Rated AC output
3,600 WSingle phase on-grid output
Backup output
3,600 VAContinuous EPS power in a grid outage
Maximum PV input
4,500 WArray size this inverter accepts
MPP trackers
2Independent roof planes
Peak efficiency
97.6 %Conversion efficiency at best
Overview

About the Sunsynk Lifelynk X

The Lifelynk X does all of that with the battery already inside it. 3.84 kWh of LiFePO4, the inverter, and in-built connection points for load, grid, CT and the Wi-Fi logger — which is what Sunsynk mean by plug and play, and why it is aimed at volume roll-outs on new build and retrofit programmes rather than at one-off bespoke systems.

It is a wall box, 543.6 mm wide and 700.6 mm tall, and the factory pre-sets mean commissioning is quick. Sunsynk Connect gives the installer full remote visibility and site-specific customisation afterwards.

Battery compatibility

Which battery does this inverter take?

This inverter takes a battery that is already inside the unit.

This model has a battery voltage window of 43.2 – 57.6 V, a maximum charge or discharge current of 60 A (configurable).

This rule applies to the Sunsynk Lifelynk X.

3.84 kWh of LiFePO4 at 51.2 V nominal, 43.2 – 57.6 V, with a configurable 60 A charge and 80 A discharge limit, built into the same wall box as the inverter.

There is no battery to choose and none to add. The Lifelynk X is a closed all-in-one: the 3.84 kWh inside it is the whole store. If you need more than that, a separate inverter and battery is the right answer and we will help you size one.
For the installer

String design, battery limits and what is in the box

The details that decide whether this unit suits the job:

  • The battery is built in and is not a choice: 3.84 kWh of LiFePO4, 51.2 V nominal, 43.2 – 57.6 V, with a configurable 60 A charge and 80 A discharge limit.
  • PV side is 4,500 W maximum across two strings at 12 A each, 500 V maximum, 150 V start-up, 120 – 450 V MPPT window.
  • Backup output is 3,600 W and 3,600 VA with a 7,200 VA peak, 16 A maximum, and a 40 A bypass. Transfer between bypass and inverter is 10 ms.
  • On-grid it takes and gives 3,600 W, so the grid side and the backup side are matched.
  • Efficiency: 97.6 % maximum, 97.0 % European, 94.0 % battery to load, 99.9 % MPPT.
  • 700.6 × 543.6 × 182.2 mm as quoted (height × length × width) and 51.7 kg. Plan the fixings and the lift.
  • Compliance is quoted against VDE 0126-1-1:2013, IEC/EN 62109-1 and -2, and G98 — so it is a G98 unit at 3.6 kW rather than a G99 one.
Applications

Where this hybrid earns its place

The Lifelynk X is specified most often for these jobs.

New build programmesOne box, factory pre-set, quick to install.
Retrofit roll-outsNo separate battery to site and cable.
Small homes and flats3.84 kWh and 3.6 kW in one wall box.
Essential-circuit backup3,600 VA with a 7,200 VA peak.
Installers managing many sitesSunsynk Connect for remote visibility.
G98 connections3.6 kW under a G98 notification.
Technical specification

Sunsynk Lifelynk X technical data

This model
Maximum PV input power4,500 W
Output, backup and performance
Rated AC output power3,600 W
Maximum apparent AC power3,600 VA
Maximum AC output current16 A
Backup (EPS) continuous power3,600 VA
Backup (EPS) peak power7,200 VA
Weight51.7 kg
Common to the range
Supported battery typeLiFePO4, built in
Nominal battery voltage51.2 V
Battery input voltage range43.2 – 57.6 V
Maximum charge voltage60 V (configurable)
Maximum charge current60 A (configurable)
Maximum discharge current80 A (configurable)
Battery capacity3,840 Wh
Maximum DC input voltage500 V
MPPT voltage range120 – 450 V
Start-up voltage150 V
Maximum input current12 A × 2
Nominal output voltage230 Vac
Nominal output frequency50 Hz
Maximum bypass current40 A
Shift time, bypass and inverter10 ms
Output THD at resistive load<3 %
Maximum efficiency97.6 %
Maximum battery to load efficiency94.0 %
European efficiency97.0 %
MPPT efficiency99.9 %
Integrated protectionBattery over-charge, battery low voltage, over temperature, output short circuit, output over voltage, output overload
Size (height × length × width, as quoted)700.6 × 543.6 × 182.2 mm
Net weight51.7 kg
Number of MPP trackers2
Compliance and warranty
Grid connection standardsG98; VDE 0126-1-1:2013
Safety and EMCIEC/EN 62109-1:2010, IEC/EN 62109-2:2011
WarrantySee the warranty document attached to this listing
Specification sourceSunsynk Lifelynk X and Lifelynk S technical specification
Goes with this

Ordered with this inverter more often than anything else

A hybrid is the middle of a system, not the whole of it. These are the parts our customers add most often:

Sunsynk - SDM120CT-M - Digital Meter (Single-Phase)Single-phase Eastron SDM120CT meter, for self-consumption and export control.
Frequently asked questions

Questions we get asked about this inverter

Can I add more battery?

No. The Lifelynk X is a closed all-in-one: the 3.84 kWh inside it is the storage. If you need more, look at a separate inverter and battery instead and we will help you size it.

What will it back up?

Whatever is wired to the essential-load output, up to 3,600 VA, with a 7,200 VA peak for starting. The changeover is 10 ms.

Is it a G98 or G99 job?

The specification quotes G98, which suits its 3.6 kW rating — a notification rather than a full application in most cases. Confirm with your DNO as always.

How much solar can I put on it?

4,500 W across two strings at 12 A each, inside a 120 – 450 V window.

ClearRay Solar

Documents, advice and trade pricing

Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our hybrid inverter range, our batteries and our solar panels, or email sales@clearraysolar.com if you would like us to check a battery pairing or a string design before you order.
