510W Tiger Neo 2.0 N-Type TOPCon 54 Cell Dual Glass Bifacial Black Frame MC4
JinkoOut of stock

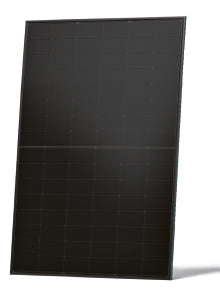

JinkoSolar 510W Tiger Neo 2.0 N-Type TOPCon Dual Glass Bifacial Black Frame Solar Panel

JKM510N-54HL4M-BDV
£74.16 ex. VAT
  • Secure Checkout
  • Next Working Day(Usually)
  • Tracked Delivery
Lower DegradationBetter long-term performance
High ReliabilityBuilt for all weather conditions
Greater Energy YieldMore power from your roof

JinkoSolar 510W Tiger Neo 2.0 N-Type TOPCon Dual Glass Bifacial Black Frame Solar Panel

The JinkoSolar Tiger Neo 510 W is an N-type mono-crystalline, bifacial double glass solar panel. It delivers 22.9 % module efficiency from a 1,961 × 1,134 mm frame.

About the JinkoSolar Tiger Neo range

Tiger Neo is JinkoSolar's mainstream n-type range, rated by the manufacturer for lower first-year and annual degradation than p-type modules and for better output in the low, diffuse light that makes up much of the UK's annual irradiance.

At 1,961 × 1,134 mm it is a residential-format module, sized to fit the rafter spans and roof planes of a standard UK house. Being bifacial, it earns most of its extra yield on flat roofs, ground mounts and light-coloured surfaces, where light reaches the back of the module; on a pitched tiled roof the rear-side gain is small.

Why installers specify this panel

  • −0.29 %/°C power temperature coefficient — output falls away more slowly as the modules heat up through the middle of the day.
  • Bifacial, φVoc 98 % ±5 %, φIsc 80 % ±5 %, φPmax 80 % ±5 % — the rear face adds generation from reflected and diffuse light, which suits flat roofs, ground mounts and light-coloured surfaces.
  • All-black appearance — a black anodised frame and dark cells, for domestic roofs where the array has to be discreet.
  • 0 to +3 % power tolerance — every module is sorted to meet or beat its 510 W nameplate rating.

Electrical characteristics (STC)

Rated power (Pmax) 510 W
Module efficiency 22.9 %
Open-circuit voltage (Voc) 40.72 V
Voltage at maximum power (Vmp) 34.39 V
Short-circuit current (Isc) 15.73 A
Current at maximum power (Imp) 14.83 A
Power tolerance 0 to +3 %
Maximum system voltage DC 1500 V (IEC)
Maximum series fuse rating 35 A

STC: AM1.5, 1,000 W/m², 25 °C cell temperature.

Mechanical specification

Cell technology N-type mono-crystalline
Number of cells 108 (54 × 2)
Front glass 2.0 mm with anti-reflection coating
Back glass 2.0 mm heat-strengthened
Frame Anodised aluminium alloy
Dimensions (H × W × D) 1,961 × 1,134 × 30 mm
Weight 27.0 kg
Junction box IP68 rated
Connector JK03M / JK03M2 (MC4 and MC4-EVO2 on request)
Cable 4.0 mm², (+) 400 mm / (−) 200 mm

Temperature and load ratings

Temperature coefficient of Pmax −0.29 %/°C
Temperature coefficient of Voc −0.25 %/°C
Temperature coefficient of Isc +0.045 %/°C
Operating temperature −40 °C to +70 °C
Protection class Class II
Fire type IEC Class C

Array sizing

Each panel covers 2.22 m². A 4 kWp array needs 8 of them (4.08 kWp over about 18 m²). A 6 kWp array needs 12 of them (6.12 kWp over about 27 m²). At 27.0 kg each they are a two-person lift.

About JinkoSolar

JinkoSolar is one of the world's largest module manufacturers. Its Tiger Neo range is built on n-type TOPCon cells with the company's HOT 3.0 process, which it rates for lower LID and LeTID degradation, better low-light output and an anti-PID guarantee, with certified salt-mist and ammonia resistance for coastal and agricultural sites.

Datasheets, installation manuals and warranty documents for the JinkoSolar Tiger Neo are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.

Note: 1200mm landscape cable included
N-Type Cell TechnologyLower degradation and higher energy yield
High Efficiency 22.9 %More power from the same roof space
Double Glass ConstructionEnhanced durability and long service life
30 years Performance WarrantyGuaranteed output for the long term
