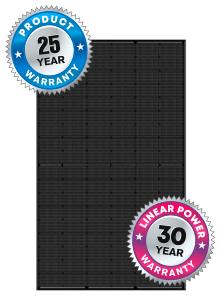

JinkoSolar 410W Tiger Neo TOPCon N-Type 54 Cell All Black MC4 Solar Panel
JinkoSolar 410W Tiger Neo TOPCon N-Type 54 Cell All Black MC4 Solar Panel
The JinkoSolar Tiger Neo 410 W is an N-type mono-crystalline solar panel. It delivers 21.0 % module efficiency from a 1,722 × 1,134 mm frame.
About the JinkoSolar Tiger Neo range
Tiger Neo is JinkoSolar's mainstream n-type range, rated by the manufacturer for lower first-year and annual degradation than p-type modules and for better output in the low, diffuse light that makes up much of the UK's annual irradiance.
At 1,722 × 1,134 mm it is a residential-format module, sized to fit the rafter spans and roof planes of a standard UK house. The black frame and dark cells keep the array visually quiet on a front-facing roof.
Why installers specify this panel
- −0.30 %/°C power temperature coefficient — output falls away more slowly as the modules heat up through the middle of the day.
- All-black appearance — a black anodised frame and dark cells, for domestic roofs where the array has to be discreet.
- 0 to +3 % power tolerance — every module is sorted to meet or beat its 410 W nameplate rating.
Electrical characteristics (STC)
| Rated power (Pmax) | 410 W |
| Module efficiency | 21.0 % |
| Open-circuit voltage (Voc) | 37.77 V |
| Voltage at maximum power (Vmp) | 31.66 V |
| Short-circuit current (Isc) | 13.68 A |
| Current at maximum power (Imp) | 12.95 A |
| Power tolerance | 0 to +3 % |
| Maximum system voltage | DC 1000 V (IEC) |
| Maximum series fuse rating | 25 A |
STC: AM1.5, 1,000 W/m², 25 °C cell temperature.
Mechanical specification
| Cell technology | N-type mono-crystalline |
| Number of cells | 108 (6 × 18) |
| Front glass | 3.2 mm anti-reflection coated, high transmission, low iron, tempered |
| Frame | Anodised aluminium alloy |
| Dimensions (H × W × D) | 1,722 × 1,134 × 30 mm |
| Weight | 22 kg |
| Junction box | IP68 rated |
| Cable | TÜV 1 × 4.0 mm², (+) 400 mm / (−) 200 mm |
Temperature and load ratings
| Temperature coefficient of Pmax | −0.30 %/°C |
| Temperature coefficient of Voc | −0.25 %/°C |
| Temperature coefficient of Isc | +0.046 %/°C |
| Operating temperature | −40 °C to +85 °C |
| Nominal operating cell temperature | 45 ±2 °C |
Array sizing
Each panel covers 1.95 m². A 4 kWp array needs 10 of them (4.10 kWp over about 20 m²). A 6 kWp array needs 15 of them (6.15 kWp over about 29 m²). Each module weighs 22.0 kg.
About JinkoSolar
JinkoSolar is one of the world's largest module manufacturers. Its Tiger Neo range is built on n-type TOPCon cells with the company's HOT 3.0 process, which it rates for lower LID and LeTID degradation, better low-light output and an anti-PID guarantee, with certified salt-mist and ammonia resistance for coastal and agricultural sites.
Datasheets, installation manuals and warranty documents for the JinkoSolar Tiger Neo are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.
