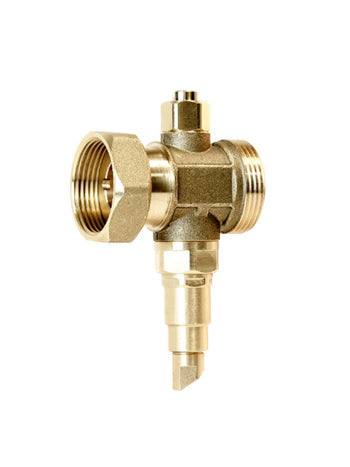

Intatec Zero Anti-Freeze Valve 28mm
Intatec Zero Anti-Freeze Valve 28mm
The Intatec Zero Anti-Freeze Valve 28mm is an anti-freeze valve. Compatible with the Ideal Logic Air and HP290 heat pump ranges.
A monobloc heat pump keeps water, not refrigerant, in the pipework outside the house. If that water freezes it splits the pipe, and on a power cut the heat pump's own frost protection cannot run. An anti-freeze valve is the mechanical backstop: it dumps water out of the circuit before it can reach freezing point, with no power required.
The Inta Zero reacts to the temperature of the water in the circuit rather than to the air around it, which is the reason it can be insulated. Part L requires external heat pump pipework and fittings to be insulated, and Intatec's own testing shows the valve still discharging at the same water temperature when it is — 2.03 °C insulated against 2.49 °C bare.
Specification
| Connection | 28 mm |
| Maximum inlet pressure (static) | 10 bar |
| Medium | Water |
| Sensitivity | ±1 °C |
| Opening temperature | 3 °C |
| Closing temperature | 4 °C |
| Working temperature range | 0 to 80 °C |
| Ambient temperature range | −30 to 60 °C |
| Maximum discharge flow rate at 3 bar | 1.5 l/h |
| Kv | 64 m³/h |
| Valve body | UNI EN 12165 CW617N brass |
| Spring | Stainless steel |
| Internal seals | EPDM PEROX |
What it works with
Part of the Ideal heat pump system:
- Heat pumps — Ideal Logic Air 4.0kW Air Source Heat Pump, Ideal Logic Air 5.0kW Air Source Heat Pump, Ideal HP290 4.5kW Air Source Heat Pump, Ideal HP290 6.0kW Air Source Heat Pump and the rest of the heat pump range
Additional suggested items
Usually bought at the same time:
- Intatec Zero Anti-Freeze Valve Protection — keeps the anti-vacuum breaker clear of debris and driving rain
- Intatec 28mm Insulation for Anti-Freeze Valve — the Part L insulation shaped for the Zero valve
