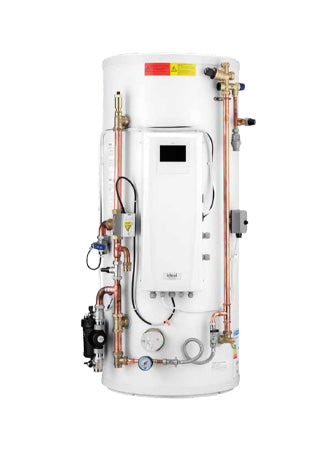

Ideal Logic Air DHW Pre-Plumbed Slimline Cylinder 150L 1 Zone

The Ideal Logic Air 150 L is a single zone pre-plumbed DHW cylinder, supplied fully pre-plumbed, pre-wired and configured for the Logic Air heat pump range. It holds 145 litres of stored hot water, and reheats from 10 °C to 50 °C in 22.26 minutes.

A pre-plumbed cylinder is a hot water cylinder that arrives with the heat pump's hydraulics already built onto it and wired into a factory-fitted control box. Instead of assembling a filter, a diverter valve, an expansion vessel, a pressure gauge, thermistors and isolation valves on site and wiring each one back to a controller, the installer connects flow, return, cold main and a power supply. It is the single biggest saving of time on a heat pump installation, and it removes most of the opportunities to get the hydraulics wrong.

This is the slimline version: a narrower cylinder of the same capacity, made taller to compensate. It is the one to choose when the airing cupboard is the constraint rather than the ceiling height.

What is included

Every item below is factory fitted and wired before the cylinder leaves Ideal:

• Control box
• Heat pump filter
• DHW 3-port valve
• P&T relief valve
• High temperature cut out
• Expansion vessel
• Pressure gauge
• Automatic air vent(s)
• Isolation valves
• 3 kW immersion heater
• Flow and return thermistors
• DHW thermistor
• Outdoor sensor

Specification

Reheat time is measured to HWA Heat Pump Test 002:2020, 0.42 l/s at 55 °C flow temperature. Check the full weight against the floor before siting a cylinder this size: at 192 kg it is a structural consideration, not just a plumbing one.

Warranty

25 years on the stainless steel cylinder, plus 2 years parts and labour on components. Ideal's terms and conditions apply, including registration and annual servicing.

Works with these heat pumps

This cylinder is supplied configured for the Ideal Logic Air range:

• Ideal Logic Air — Ideal Logic Air 4.0kW Air Source Heat Pump, Ideal Logic Air 5.0kW Air Source Heat Pump, Ideal Logic Air 8.0kW Air Source Heat Pump and the rest of the heat pump range

Additional suggested items

Commonly ordered alongside a pre-plumbed cylinder:

• Ideal Magnetic Filter — captures the magnetite a strainer cannot, protecting the plate heat exchanger
• Intatec Zero Anti-Freeze Valve 28mm — mechanical frost protection for the external pipework, works without power
• Ideal Flexible Hose 500mm — pre-insulated, vibration-absorbing final connection to the unit

The datasheet, installation manual and user guide are in the Documents tab above. Pricing a full system? Contact our sales team at sales@clearraysolar.com.
