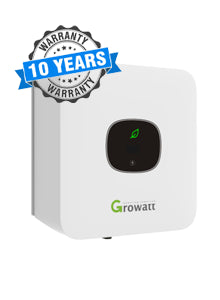

GROWATT MIC 2000TL X Single MPPT with Arc Fault Protection with DC
- GROWATT MIC 2000TL X Single MPPT with Arc Fault Protection with DC
- Part No: GROWATT-MIC2000-TL-X-AFP-DC
- Inverters - Main Units
- Rating: 2,000W
- Phases: 1
- MPPT tracking accuracy of 99%
- Max. Efficiency 97.6%, European Efficiency 96.5%
- Transformerless design, offer lighter and more convenient installation
- Power factor continuously adjustable
- Flexible interface
- Touch key & OLED display
Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X range has a single MPPT.
The Growatt inverter range has the following leading-edge technology.
UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an ‘Installer Code’ for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account.
For more information, please refer to the following document: Growatt Installer Code policy
Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.
Electrical
| Rated Power (Pmax) | 2,000 W |
|---|---|
| Module Efficiency | 97.4 % |
| MPPT Quantity | 1 |
| Min MPPT Voltage | 50 V |
| Max MPPT Voltage | 500 V |
| Max Input Voltage | 500 V |
| Max DC Power | 2,800 W |
| Max AC Power (5 min) | 2,000 VA |
| Surge AC Power (1 sec) | 2,000 W |
| Max DC Current | 13 A |
| Max DC Inputs | 1 |
| Integrated DC Switch | No |
Mechanical
| Height | 254 mm |
|---|---|
| Width | 274 mm |
| Depth | 138 mm |
| Weight | 6 kg |
| Connector | H4 / MC4 |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years optional |
|---|
